Curvv LED Surgical Light Supplier
Curvv LED Surgical Light

Curvv Series

Double Dome LED OT Light

The Double Dome LED OT Light is engineered to provide high-intensity, shadowless illumination for enhanced visibility during surgical procedures. Equipped with two independently adjustable light domes, it ensures broad, uniform illumination and flexible positioning. Features include adjustable colour temperature (3500–5000 K), high colour rendering (CRI 95 Ra), Endo Mode, three preset lighting modes, and sterilizable handles for precise lighting control. Its energy-efficient LED technology, heat-dissipating aluminium body, and flexible ceiling-mounted arms deliver reliable performance and smooth manoeuvrability, making it suitable for modern operation theatres.

German Technology Arm
Smart Sensor
Display Touchscreen
Aluminum Construction
Categories: , ,

Equipped With Advanced Features

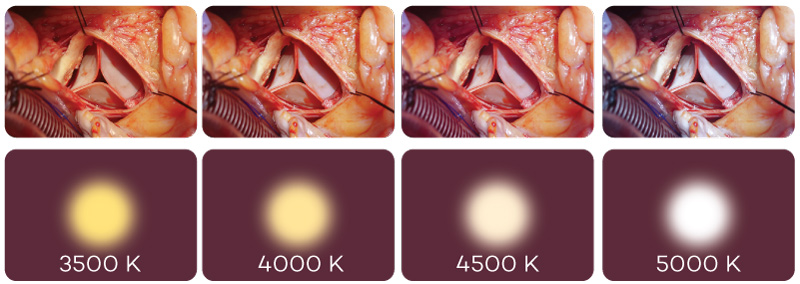

Adjustable Colour Temperature

Curvv LED lights are capable of producing a wide range of color temperatures between 3500-5000 K, allowing users to adjust the lighting to suit different purposes, environments, and preferences.

Adjustable color temperature allows surgeons to fine-tune the lighting to match their specific needs for different procedures.

Adjustable Color Temperature feature in Komax OT Light

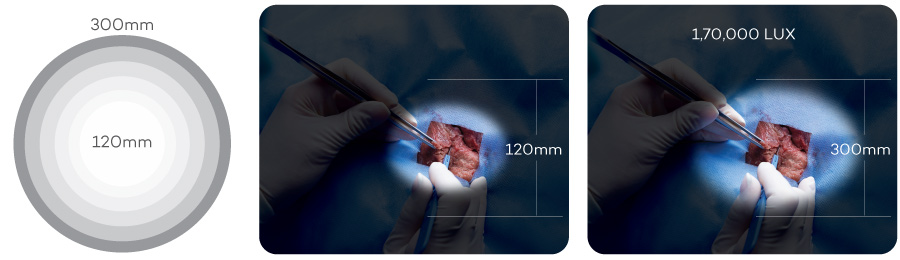

Supramaximal effective light field

Light field diameter 120-300mm is the width of light coverage on the surgical area. It is calculated using two standard reference points. This measurement shows how much surface the light effectively illuminates. A well-defined diameter gives uniform brightness across the field. Surgeons get consistent, shadow-less visibility throughout the procedure

Supramaximal effective light field

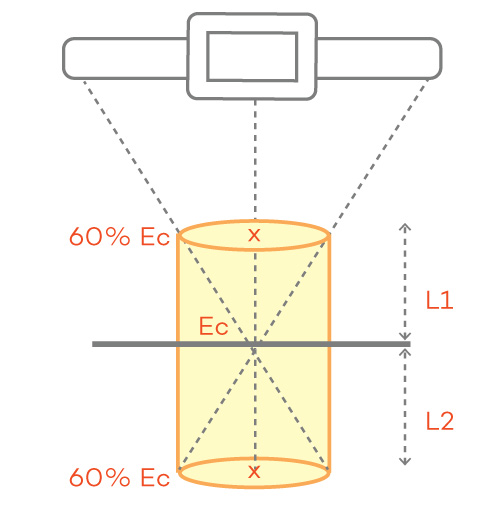

Large Depth of Field

Curvv Delivers excellent Depth of Illumination Ec x 60% : 650 mm

The vertical distance between the point of maximum intensity (Ec) of illumination at the centre of the illuminating field (one meter from the surface emission of light) & the detection of the value of 60% of central illumination in upward direction (L1) and downward direction (L2).

These values added together (L1 + L2) gives the depth of illumination without the need to refocus. The higher level of illumination depth is very important especially in case of narrow and deep wound channel.

With high light intensity and large spot size, 1200mm depth of field provides good lighting without having to refocus when the surgical wound location changes.

CRI Color Rendering Index

R9 Red Color Index

Higher CRI = Superior results

CRI (Ra 95), indicates overall color accuracy (average of R1–R8), while R9 measures how accurately strong red colors are rendered—both are important for true and natural color appearance. The light delivers highly accurate color rendering, enabling clear and natural visualization of blood similar to natural daylight conditions

overall color accuracy

Energy Efficient Module

High-power LEDs boost efficiency — 1 LED of 5W delivers 30% more output than 5 LEDs of 1W. Constant Illumination Technology (CIT) also extends LED lifespan.

Energy Efficient Module

Constant Illumination Technology (CIT)

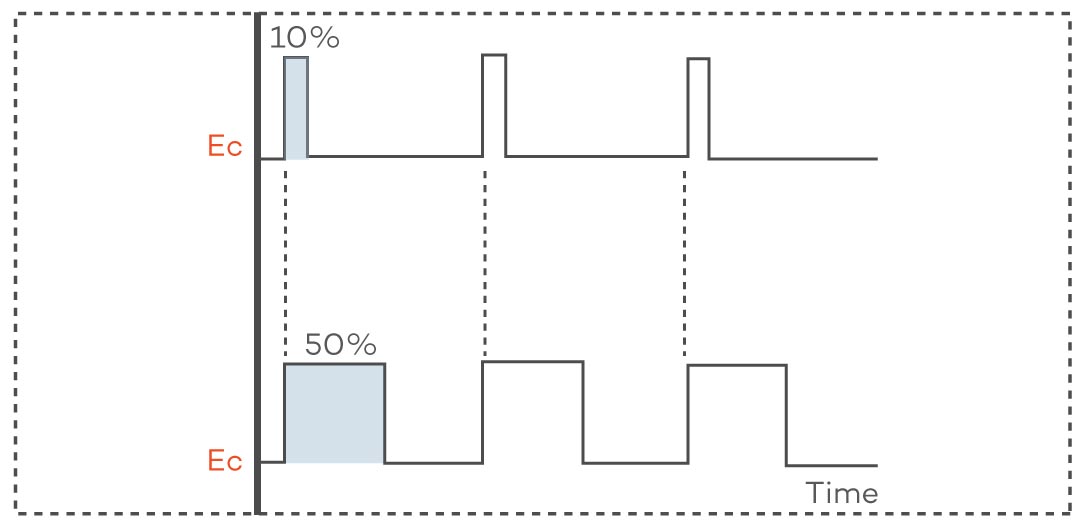

Ensuring uniform light field stability

In Constant Illumination Technology (CIT), the LED is driven in pulses of a particular duty cycle. Due to this, the LED is turned ON only for a limited period (ON period) and rests for the time it is turned OFF. This method allows the LED to cool down between two switch ON periods. This helps in extending the life of the LED.

Features:

  • Reduces heat build-up
  • Improves LED efficiency and reliability
  • Maintains consistent light intensity
  • No change in light colour output throughout lifecycle
Ensuring uniform light field stability

Maintaining Light Performance

CIT maintains constant intensity and colour temperature throughout each surgical procedure.

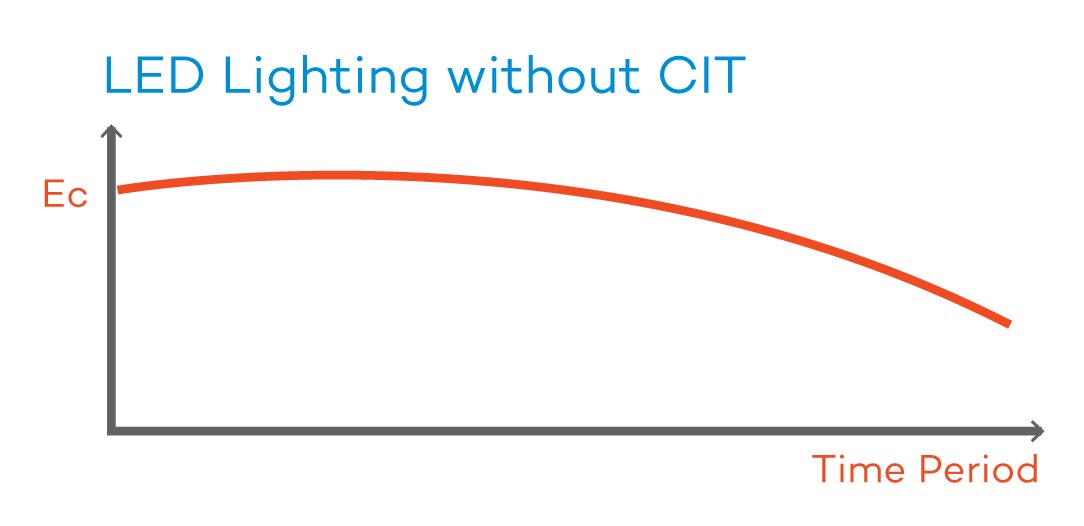

LED Lighting without CIT

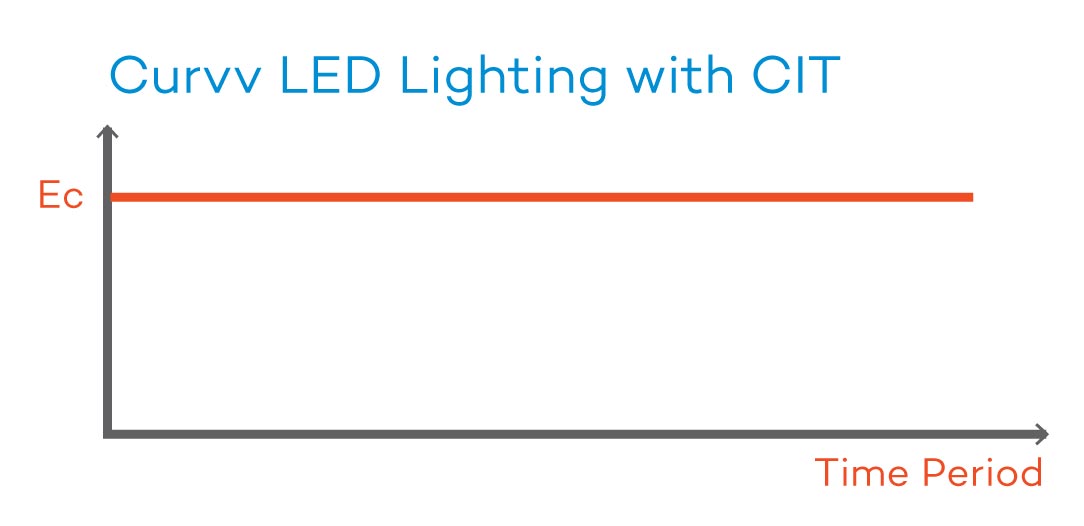

Curvv LED Lighting with CIT

Curvv Series Features

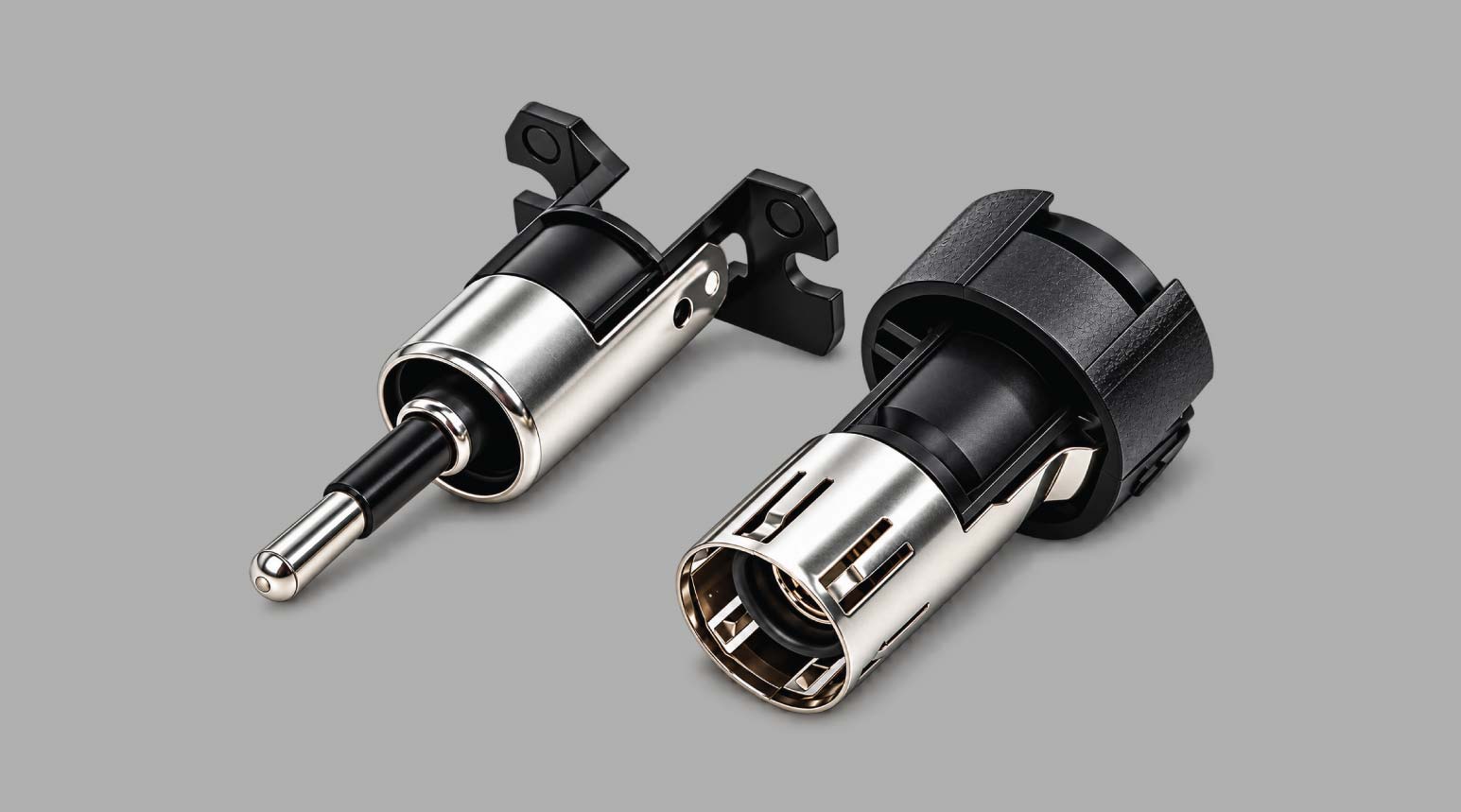

360° Rotatable German Connector

360° Rotatable German Connector

Features a 360° rotatable German connector for smooth rotation, flexible positioning, and reliable electrical connectivity.

High-quality bearing

High-quality bearing

delivers no drift and seamless, flexible rotation.

ISO standard base plate

ISO standard base plate

design to ensure no shaking of light during movement.

High-strength aluminum

High-strength aluminum

construction for rust-free and long-lasting powder coating.

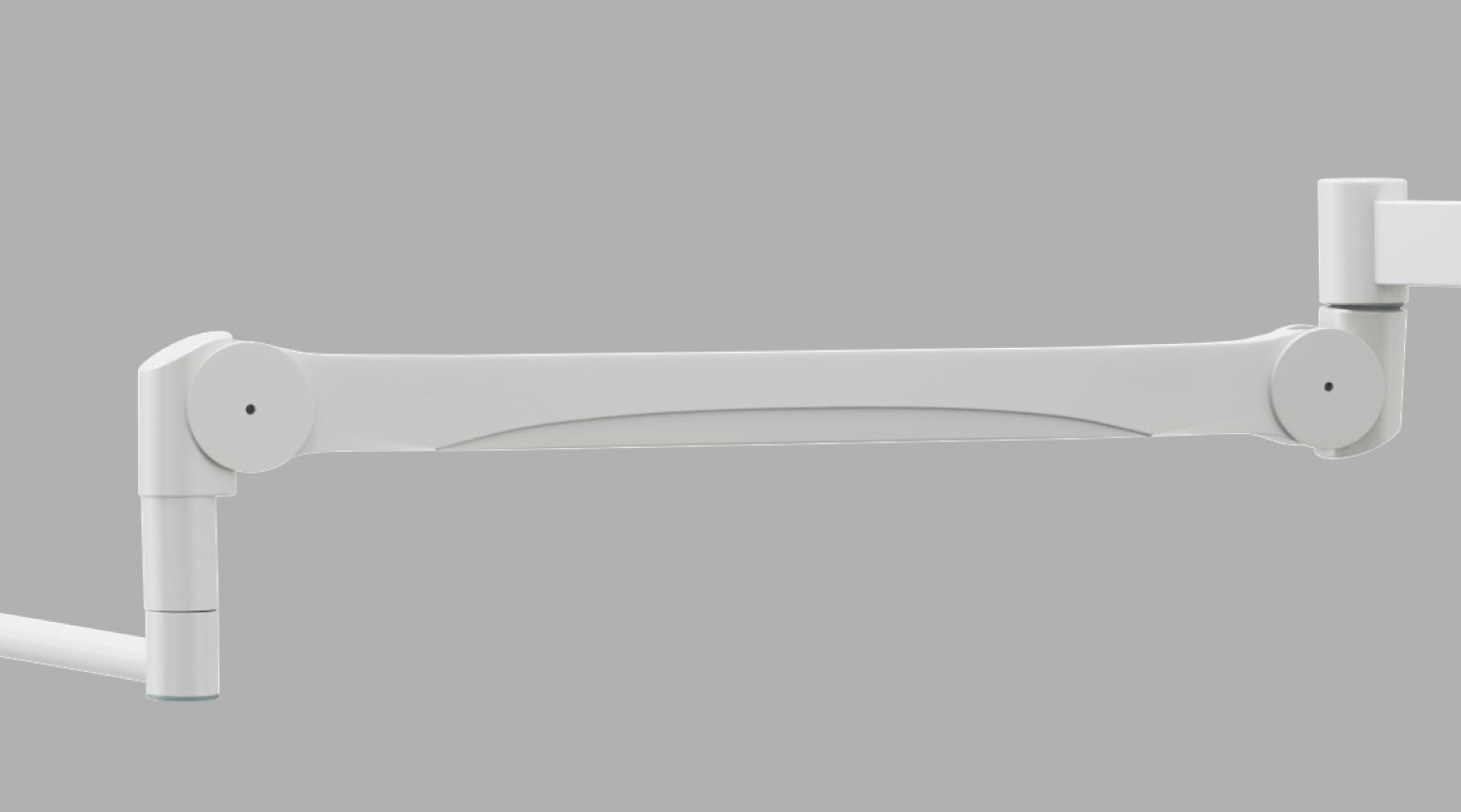

German spring arm

German spring arm

designed for dual movement and complete 360° flexibility.

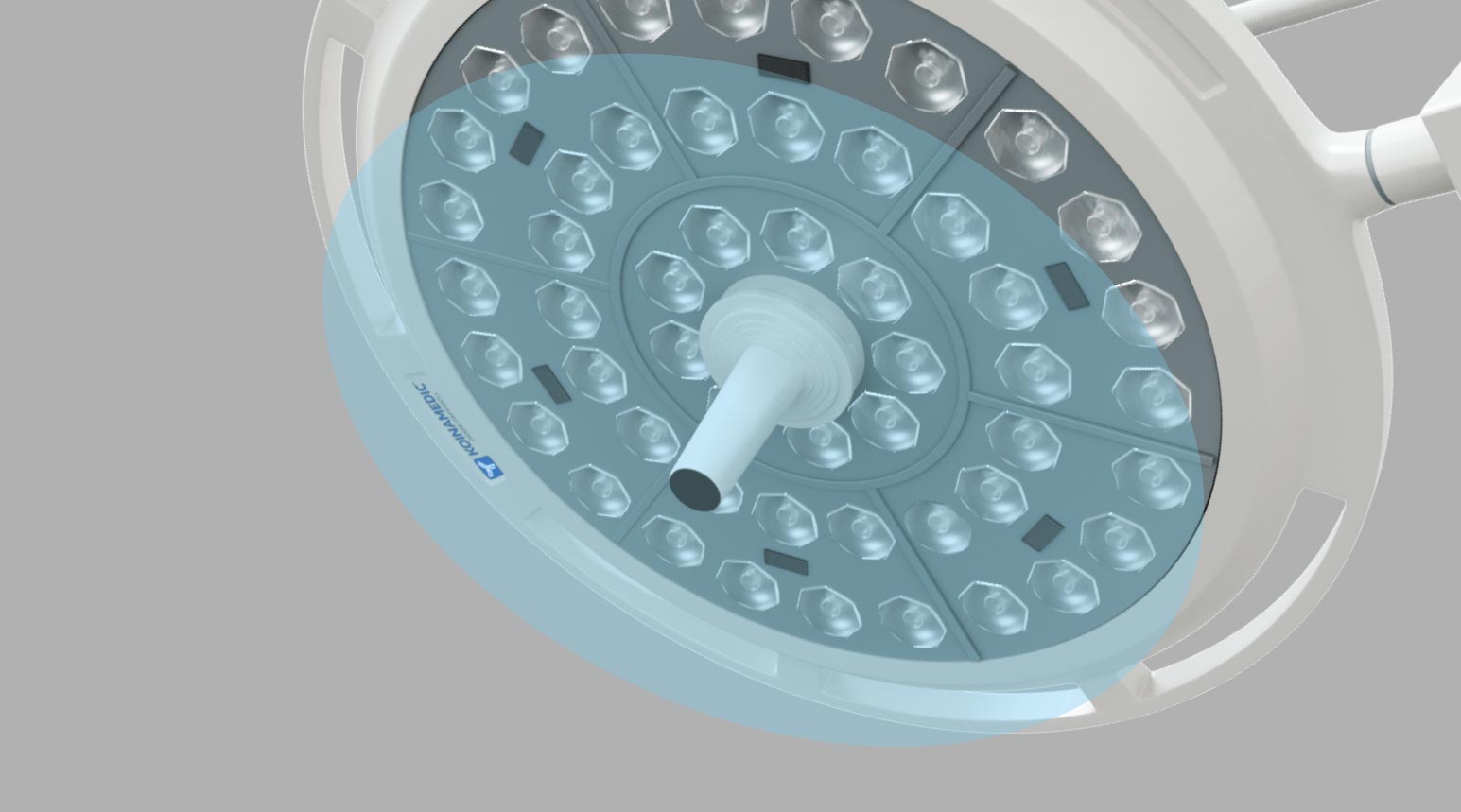

Safety Glass for Lens Protectionl

Safety Glass for Lens Protection

Fire-resistant ESG safety glass protects the lens from scratches, UV/IR rays, and enables fast disinfection with improved light transmission.

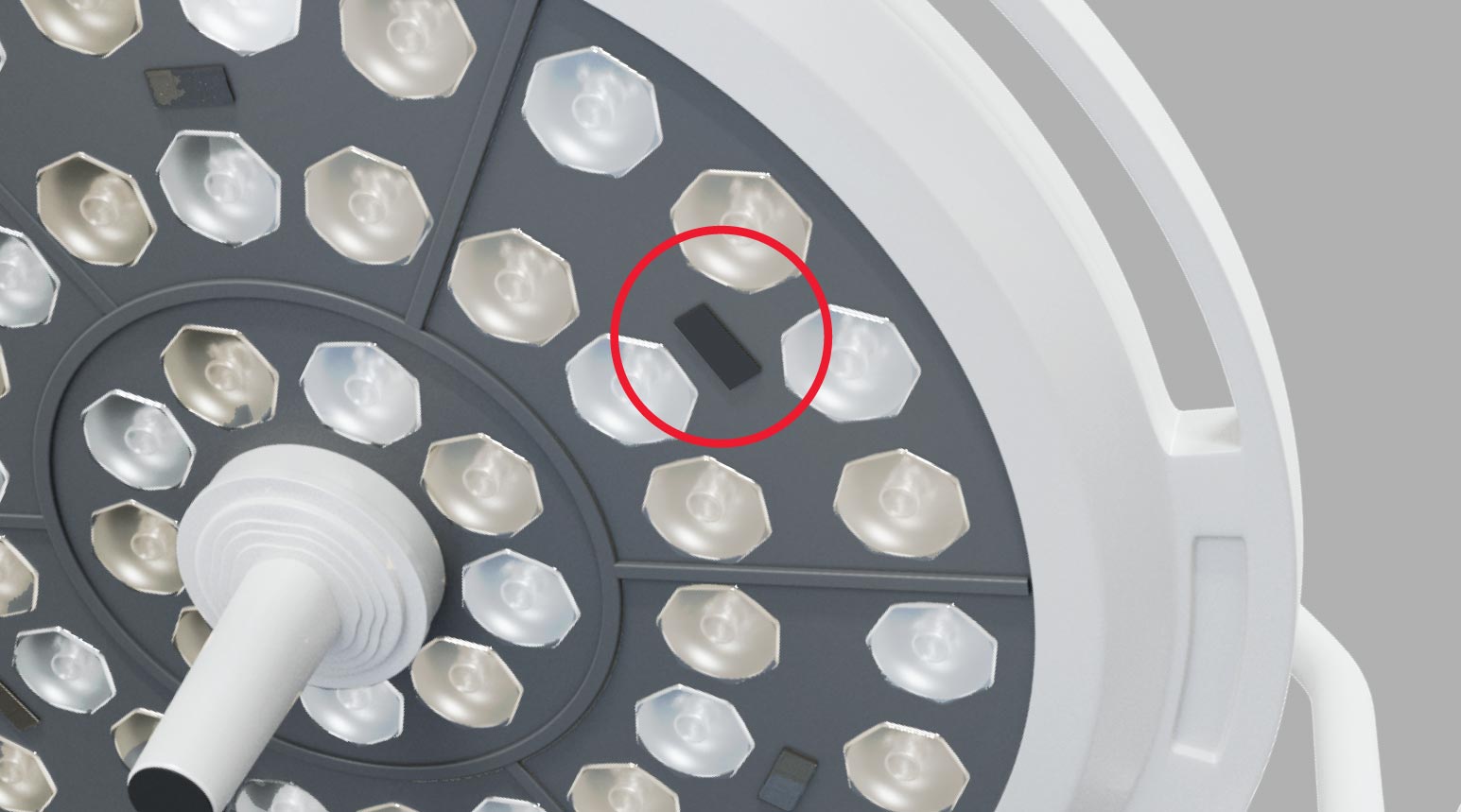

Smart Sensor in Surgical Light

Smart Sensor in Surgical Light Optional

Automatically adjusts LED intensity in real time by detecting the surgeon’s movements, compensating for any obstruction to maintain uniform illumination of the surgical field.

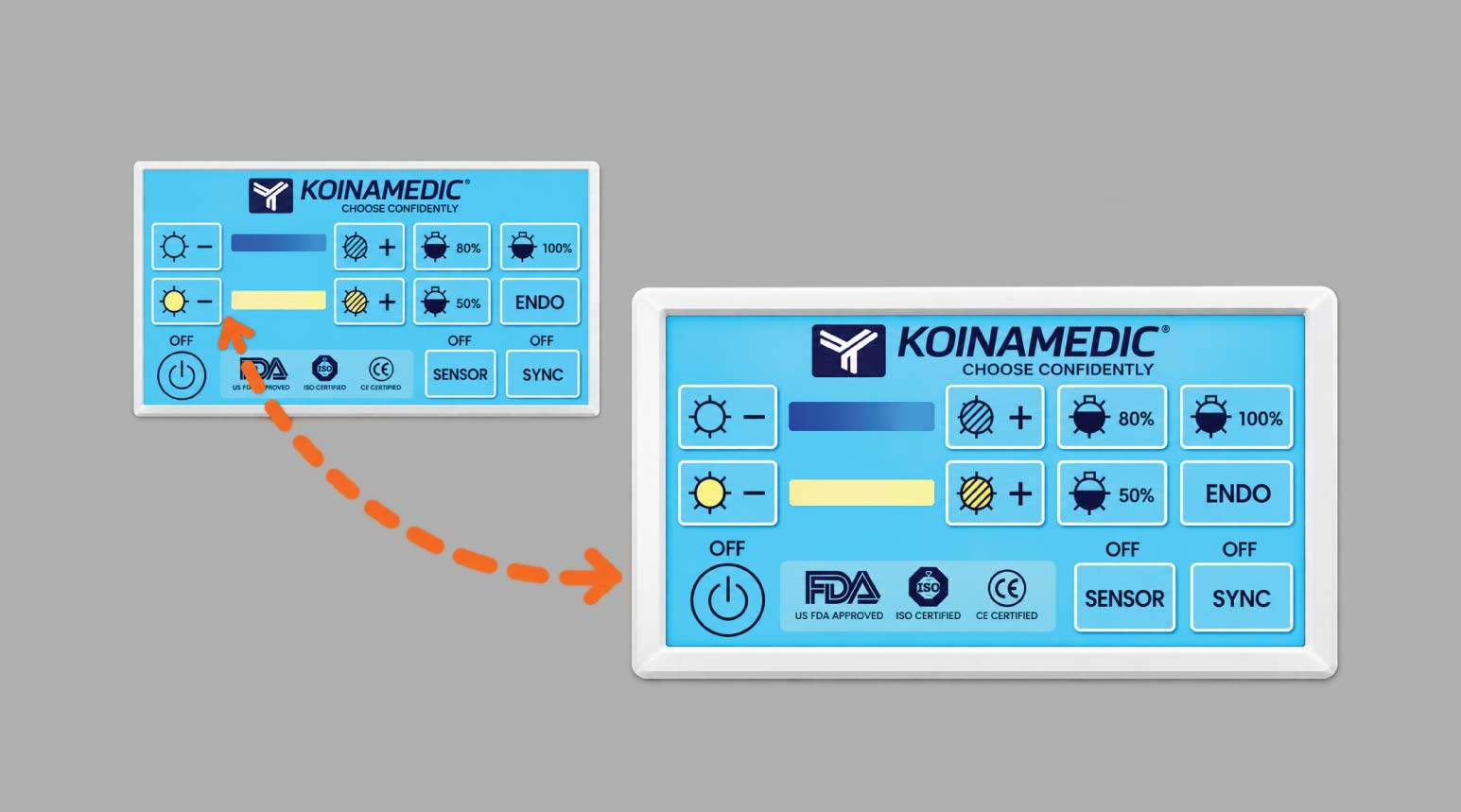

Synchronization function

Synchronization function optional

When activating the sync mode, all of the systems's active light head work with the same light setting, so that the light heads can be controlled simultaneously with one control panel

Advanced Surgical Lighting Technology

Precision illumination, intelligent controls, and superior color accuracy for enhanced surgical performance.

Memory Function

3 Preset Modes

Saves light settings for quick start and time efficiency during procedures
Light Field Diameter

Light Field Diameter

120-300 mm
LED Life / Color

LED Life / Color

>60000 Hrs. White & Yellow (Double Colour)
Illumination Intensity

Illumination Intensity adjustment

Max. 1,60,000 Lux ±10%
Endo Mode

Endo Mode

Ideal for endoscopic surgery with a single click
Light Field Diameter

Diameter of Light

650mm
Colour Rendering Index

Colour Rendering Index

95 RA
Adjustable Color Temp.

Adjustable Color Temp.

3500-5000 K

Technical Specifications

Explore the advanced features, illumination performance, and technical specifications of the Curvv 52 LED Surgical Light

Model Curvv 52
Installation Double Dome
Colour of LED White & Yellow, Dual Colour
No. of LED (ea) 52 + 52
Intensity (Lux) 1,60,000 + 1,60,000 ±10%
Intensity Control 10 step
CRI (Ra) 95
Color Temperature (K) 3500–5000 Adjustable
Light Field Size (cm) 120–300 mm
Diameter of Light (mm) 650
LED Life Span (Hrs.) >60000
Focusing Adjustable
Power Consumption (W) 150
Detachable Center Grip Yes (2X)
Monitor / Camera Optional
Screen / Wall Controller Optional
Battery Backup Optional
Smart Sensor (ea) Optional
Certification CE / FDA / EU MDR

Frequently Asked Questions

The Curvv Series delivers a maximum illumination of 160,000 + 160,000 lux ±10%, providing bright and focused lighting for surgical applications.

Yes, it offers adjustable colour temperature from 3500 K to 5000 K, allowing users to select the preferred lighting tone.

The Curvv LED Surgical Light features a CRI of 95 Ra for accurate and natural colour representation.

Yes, the Endo Mode is designed for endoscopic procedures and can be activated with a single click.

The light features a touchscreen control panel for adjusting illumination intensity, colour temperature, preset modes, Endo Mode, sensor settings, synchronization and power. A wireless hand remote is available as an option.

Yes, an optional smart sensor can detect the surgeon's movements and adjust LED intensity to help maintain illumination when the surgical light is obstructed.

The Curvv Series is available in single-arm, dual-arm and triple-arm ceiling configurations, including a triple-arm setup with two lights and a monitor. Mobile and wall-mounted options are also available.

Yes, it includes a sterilizable, autoclavable handle that allows sterile adjustment of the light field diameter.
