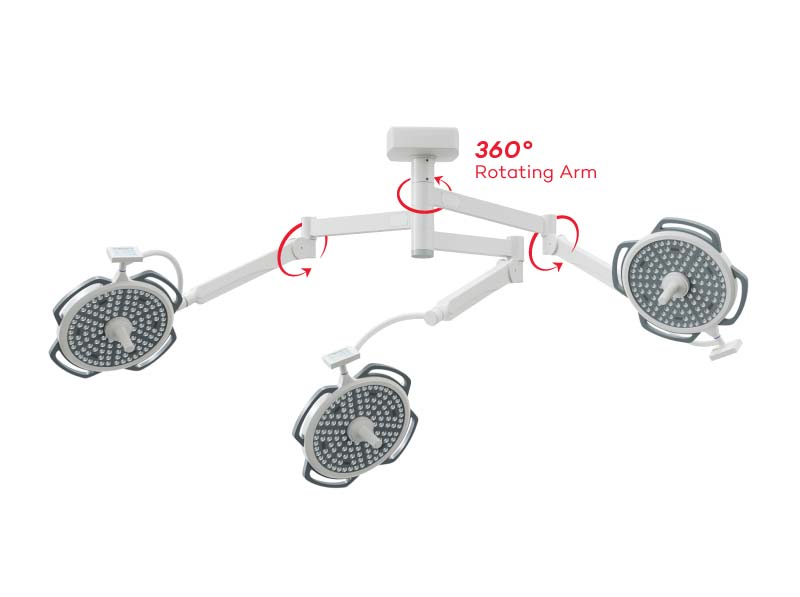

Komax LED OT Light Triple Dome Supplier

Komax Series

Triple Dome LED OT Light

The Triple Dome LED OT Light is designed to deliver high-intensity, shadowless illumination for enhanced visibility during complex surgical procedures. Featuring three independently adjustable light domes, adjustable light intensity and colour temperature, a high colour rendering index (CRI), Endo Mode, and sterilizable handles, it ensures precise lighting control and reliable performance. Its triple-dome configuration and flexible ceiling-mounted arms provide extensive, uniform illumination and smooth positioning across the operating field, making it ideal for modern operation theatres.

German Technology Arm
Smart Sensor
Display Touchscreen
Aluminum Construction
Categories: , ,

Equipped With Advanced Features

Adjustable Colour Temperature

Komax LED lights are capable of producing a wide range of color temperatures between 3500-5000 K, allowing users to adjust the lighting to suit different purposes, environments, and preferences.

Adjustable color temperature allows surgeons to fine-tune the lighting to match their specific needs for different procedures.

Adjustable Color Temperature feature in Komax OT Light

Supramaximal effective light field

Light field diameter 120-300mm is the width of light coverage on the surgical area. It is calculated using two standard reference points. This measurement shows how much surface the light effectively illuminates. A well-defined diameter gives uniform brightness across the field. Surgeons get consistent, shadow-less visibility throughout the procedure

Supramaximal effective light field

Large Depth of Field

Komax Delivers excellent Depth of Illumination Ec x 60% : 600 mm

The vertical distance between the point of maximum intensity (Ec) of illumination at the centre of the illuminating field (one meter from the surface emission of light) & the detection of the value of 60% of central illumination in upward direction (L1) and downward direction (L2).

These values added together (L1 + L2) gives the depth of illumination without the need to refocus. The higher level of illumination depth is very important especially in case of narrow and deep wound channel.

With high light intensity and large spot size, 1200mm depth of field provides good lighting without having to refocus when the surgical wound location changes.

CRI Color Rendering Index

R9 Red Color Index

Higher CRI = Superior results

CRI (Ra 95), indicates overall color accuracy (average of R1–R8), while R9 measures how accurately strong red colors are rendered—both are important for true and natural color appearance. The light delivers highly accurate color rendering, enabling clear and natural visualization of blood similar to natural daylight conditions

overall color accuracy

Energy Efficient Module

High-power LEDs boost efficiency — 1 LED of 5W delivers 30% more output than 5 LEDs of 1W. Constant Illumination Technology (CIT) also extends LED lifespan.

Energy Efficient Module

Constant Illumination Technology (CIT)

Ensuring uniform light field stability

In Constant Illumination Technology (CIT), the LED is driven in pulses of a particular duty cycle. Due to this, the LED is turned ON only for a limited period (ON period) and rests for the time it is turned OFF. This method allows the LED to cool down between two switch ON periods. This helps in extending the life of the LED.

Features:

  • Reduces heat build-up
  • Improves LED efficiency and reliability
  • Maintains consistent light intensity
  • No change in light colour output throughout lifecycle
Ensuring uniform light field stability

Maintaining Light Performance

CIT maintains constant intensity and colour temperature throughout each surgical procedure.

LED Lighting without CIT
Komax LED Lighting with CIT

Komax Series Features

360° Rotatable German Connector

360° Rotatable German Connector

Features a 360° rotatable German connector for smooth rotation, flexible positioning, and reliable electrical connectivity.

High-quality bearing

High-quality bearing

delivers no drift and seamless, flexible rotation.

ISO standard base plate

ISO standard base plate

design to ensure no shaking of light during movement.

High-strength aluminum

High-strength aluminum

construction for rust-free and long-lasting powder coating.

Endo Mode

Endo Mode

It reduces the overall intensity of the white LED light to create a lower ambient illumination level in the operating room, helping improve the contrast & visibility of endoscopic images captured during the procedure.

Safety Glass for Lens Protectionl

Safety Glass for Lens Protection

Fire-resistant ESG safety glass protects the lens from scratches, UV/IR rays, and enables fast disinfection with improved light transmission.

Sterilizable Handle

Sterilizable Handle

Sterilizable autoclavable handle for superior infection control with easy sterile adjustment of light field diameter.

Smart Sensor in Surgical Light

Smart Sensor optional

Automatically adjusts LED intensity in real time by detecting the surgeon’s movements, compensating for any obstruction to maintain uniform illumination of the surgical field.

Synchronization function

Synchronization function optional

When activating the sync mode, all of the systems's active light head work with the same light setting, so that the light heads can be controlled simultaneously with one control panel

Wireless Wall Controller / Hand Remote

Wireless Wall Controller / Hand Remote optional

The controller allows control of the light through wireless transmission, even by an attendant located far from the light.

Advanced Surgical Lighting Technology

Precision illumination, intelligent controls, and superior color accuracy for enhanced surgical performance.

Memory Function

Memory Function

Saves light settings for quick start and time efficiency during procedures
Light Field Diameter

Light Field Diameter

12-30 cm
LED Life / Color

LED Life / Color

>60000 Hrs. White & Yellow (Double Colour)
Illumination Intensity

Illumination Intensity

Continous adjustment Max. 1,60,000 Lux ±10%
Endo Mode

Endo Mode

Ideal for endoscopic surgery with a single click
Light Field Diameter

Diameter of Light

600mm
Colour Rendering Index

Colour Rendering Index

95 RA
Adjustable Color Temp.

Adjustable Color Temp.

3500-5000 K

Technical Specifications

Explore the advanced features, illumination performance, and technical specifications of the Komax 126 LED Surgical Light

Model Komax 126 + 126 + 126 Komax 84 + 84 + 84 Komax 54 + 54 + 54
Installation Triple Dome Triple Dome Triple Dome
Colour of LED White & Yellow, Dual Colour White & Yellow, Dual Colour White & Yellow, Dual Colour
No. of LED (ea) 126 + 126 + 126 84 + 84 + 84 54 + 54 + 54
Intensity (Lux) 1,60,000 + 1,60,000 + 1,60,000 ±10% 1,50,000 + 1,50,000 + 1,50,000 ±10% 1,50,000 + 1,50,000 + 1,50,000 ±10%
Intensity Control 10 step 10 step 10 step
CRI (Ra) 95 95 95
Color Temperature (K) 3500–5000 Adjustable 3500–5000 Adjustable 3500–5000 Adjustable
Light Field Size (cm) 12–30 12–30 12–30
Diameter of Light (mm) 600 600 600
LED Life Span (Hrs.) >60000 >60000 >60000
Focusing Adjustable Adjustable Adjustable
Power Consumption (W) 150 150 150
Detachable Center Grip Yes (2X) Yes (2X) Yes (2X)
Monitor / Camera Optional Optional Optional
Screen / Wall Controller Optional Optional Optional
Battery Backup Optional Optional Optional
Smart Sensor (ea) Optional Optional Optional
Certification CE / FDA / EU MDR CE / FDA / EU MDR CE / FDA / EU MDR

Frequently Asked Questions

The Komax 126 + 126 + 126 is a ceiling-mounted LED surgical OT light designed to provide high-intensit, uniform illumination for clear visibility during surgical procedures.

The Komax 126 provides a maximum illumination intensity of 160,000 + 1,60,000 + 1,60,000 Lux ±10%, supporting clear visibility of the surgical field.

The Komax 126 + 126 + 126 Triple Dome LED OT Light features 126 + 126 + 126 LEDs for high-intensity surgical illumination.

Yes, the colour temperature can be adjusted from 3500 K to 5000 K to suit different surgical lighting requirements.

The Komax 126 is designed to minimize shadows and provide uniform illumination of the surgical field during procedures.

The Komax 126 has a Colour Rendering Index (CRI) of Ra 95, supporting accurate colour representation of tissues and the surgical field.

The LED lifespan is rated at more than 60,000 hours, helping reduce maintenance and replacement frequency.

Yes, battery backup is available as an optional feature. Contact the supplier to confirm the available configuration and backup duration.
