Ayra K1 Ultra Low Height

Ayra K1 Ultra Low Height

Electro-Hydraulic OT Table

The AYRA K1 Ultra Low Height Electro-Hydraulic Operating Table is designed to provide precise patient positioning and flexible surgical access across various surgical disciplines. It features a modular tabletop, a divided leg section, and smooth electro-hydraulic height adjustment. With up to 300 mm of longitudinal sliding for C-arm access, a 350 kg patient weight capacity, and gas-spring-operated head and leg sections, the AYRA K1 combines stability, versatility, and convenient operation. Its smooth, easy-to-clean design and mobility-enhancing casters support efficient operating room workflows.

Ultra Low Height Design
Electro-Hydraulic Operation
Enhanced Imaging Access
Heavy-Duty Construction
Categories: ,

Equipped With Advanced Features

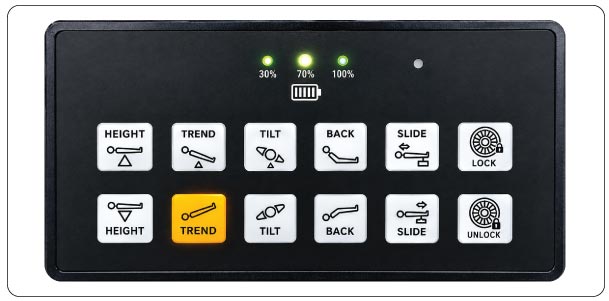

Ayra K1 Ultra Low Height Control Panel

Control Panel

The Control Panel for the AYRA K1 Electro-Hydraulic Operating Table provides convenient control of supported table positioning functions. Its clearly arranged buttons help operators adjust table positions efficiently and support precise patient positioning during surgical procedures.

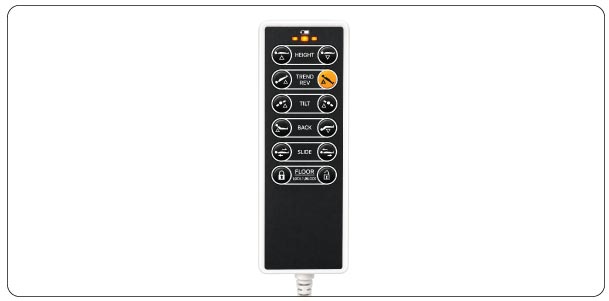

Ayra K1 Ultra Low- Height Remote

Remote

The Remote Control for the AYRA K1 Electro-Hydraulic Operating Table enables convenient operation of supported table positioning functions. It allows operators to make adjustments efficiently, helping achieve precise patient positioning during surgical procedures.

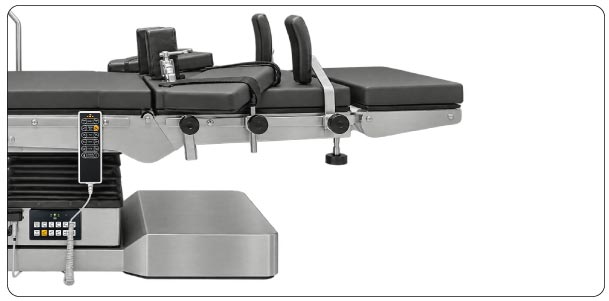

Ayra K1 Ultra Low Height Innovative Flat Design

Innovative Flat Design

Flat design facilitates easy cleaning and enhances infection control effectiveness.

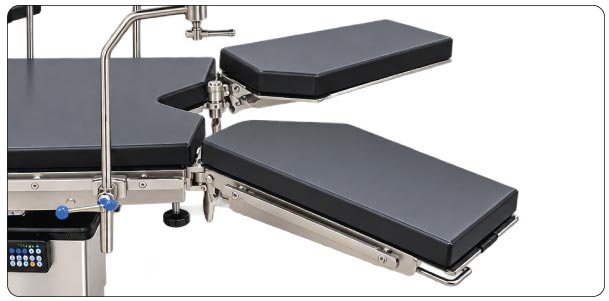

Ayra K1 Ultra Low Height Divided Leg Section

Divided Leg Section

Suitable for all major surgical procedures

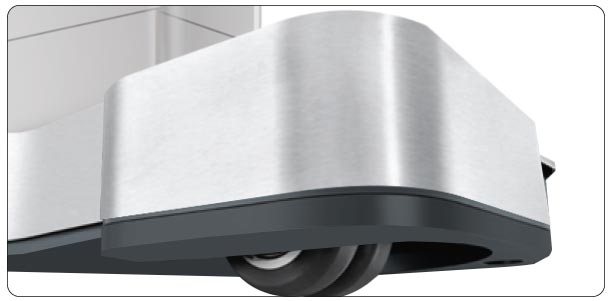

Ayra K1 Ultra Low Height Smooth Mobility

Smooth Mobility

Four double-swivel castors facilitate easy movement of the table in any direction.

Salient Features

The AYRA K1 features a modular tabletop with easy-click mounting points, an antistatic and waterproof memory-pad mattress, standard override panel control, and adjustable height for comfortable working positions. It offers up to 300 mm of longitudinal sliding for C-arm access without patient repositioning, supports a patient weight capacity of 350 kg, and features gas-spring-operated head and leg sections for flexible surgical positioning.

Standard Features

Optional features include remote-controlled floor locking for convenient table stabilization and a sliding tabletop for enhanced positioning flexibility and C-arm access.

Standard Accessories

Standard accessories include a remote control, control panel, arm rests, side supports, shoulder supports, leg supports, an anaesthetic screen, clamps, and a mattress for convenient operation and patient positioning.

Table Position

The AYRA K1 supports up-and-down height adjustment, left and right lateral tilt, Trendelenburg and Reverse Trendelenburg positioning, flex and reflex positions, longitudinal tabletop sliding, and a manually operated built-in kidney bridge for versatile surgical positioning.

Dimensions K1 OT Table

Technical Specifications

Explore the advanced features, performance, and technical specifications of the Ayra K1 Ultra Low Height.

Model Ayra K1 Ultra Low Height
Length of Table 2000 mm
Width of Table Top 540 mm
Height of Table Min. 550 mm, Max. 1050 mm
Trendelenburg 25°
Reverse Trendelenburg 25°
Lateral Tilt - Left & Right 20°
Back Section Up/Down 80°/30°
Head Section Up/Down 30°/55°
Leg Section 0°-90°
Top Sliding 300mm
Floor Locking System Center Floor Locking By Remote

Height Adjustable

Adjustable maximum and minimum heights for comfortable working, seated or standing.

Height Adjustable

Frequently Asked Questions

The AYRA K1 supports a maximum patient weight capacity of 350 kg.

The table supports height adjustment, lateral tilt, Trendelenburg and Reverse Trendelenburg, flex and reflex positions, tabletop sliding, and a manually operated built-in kidney bridge.

The tabletop offers up to 300 mm of longitudinal movement to facilitate C-arm access without repositioning the patient.

Yes, the table offers adjustable minimum and maximum heights to accommodate different surgical working positions. Confirm the exact height range for the selected configuration with the manufacturer.

The AYRA K1 features a modular tabletop designed for different surgical disciplines, with easy-click mounting points for adapting accessories and positioning configurations.

The table includes a remote control and a control panel. A standard override panel control is also specified for enhanced operational safety.
