Ayra K2 OT Table Manufacturer

Ayra K2 OT Table

Electric Surgical Table

The AYRA K2 Electric Surgical Table features a modular tabletop design suitable for various surgical disciplines. It offers smooth, precise positioning with electric height adjustment, Trendelenburg and Reverse Trendelenburg functions, lateral tilt, and flexible tabletop articulation. Its five-section radiolucent tabletop, detachable head, leg and pelvic sections, and up to 250 mm longitudinal slide support versatile surgical positioning and C-arm access. The table also features a stainless-steel base and cover, standby battery backup, and three height variants to accommodate different working requirements.

Flexible Surgical Positioning
Modular Tabletop Design
C-Arm Compatibility
Reliable Construction and Control
Categories: ,

Equipped With Advanced Features

Remote

The handheld remote allows easy and precise adjustment of operating table height and positioning, offering convenient control during surgical procedures.

Remote

Optional Control Panel

The user-friendly control panel enables convenient and precise adjustment of operating table positions, ensuring smooth operation and efficient patient positioning during surgical procedures.

Control Panel

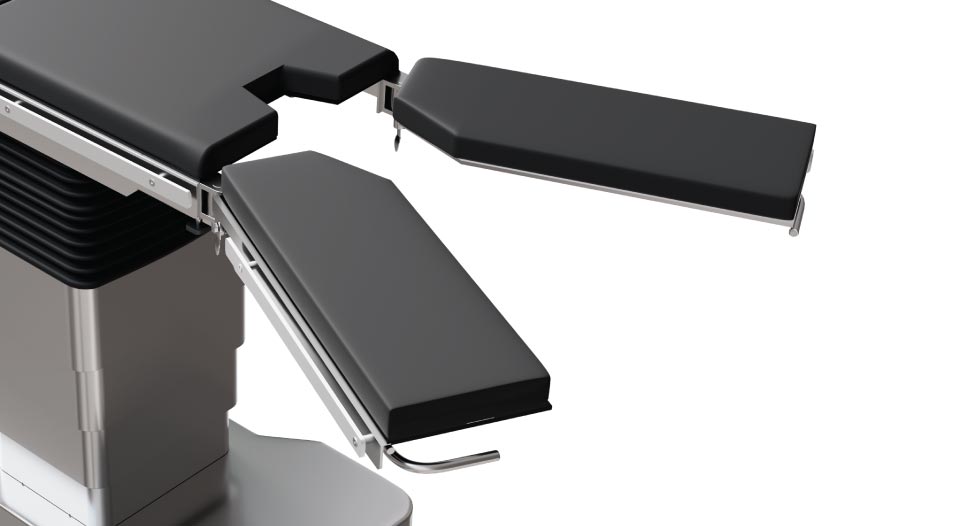

Optional Split Leg Section

The optional split leg section allows independent leg positioning, providing greater flexibility during surgical procedures. It supports adaptable patient positioning to accommodate different surgical requirements and improve access to the operative area.

Split Leg Section OT Table

Salient Features

The AYRA K2 Electric Surgical Table features a modular tabletop designed for various surgical disciplines, with quick-click mounting points for easy adaptation to different procedures and patient heights. Its five-section radiolucent tabletop includes detachable head, leg, and pelvic sections, while the memory-foam mattress offers antistatic and waterproof properties. The eccentric pillar design, stainless-steel fittings, and easy-to-clean base and cover ensure durability and hygiene. With adjustable height, smooth and stepless tabletop articulation, and gas-spring-operated head and leg sections, the table supports precise patient positioning. It also offers up to 250 mm of longitudinal sliding for C-arm access without repositioning the patient, a 150 kg weight capacity, and standby battery backup with a recharging circuit.

Optional Features

Optional features include remote-controlled floor locking, a wireless remote, an additional control panel, a sliding tabletop, and a manual override for enhanced operational flexibility.

Table Position by Manual

The table supports left and right lateral tilt, flex and reflex positioning, and kidney bridge adjustment for flexible and precise patient positioning.

Table Positions

The table offers up-and-down height adjustment, left and right lateral tilt, Trendelenburg and Reverse Trendelenburg positioning, flex and reflex positions, and a manually operated built-in kidney bridge for flexible patient positioning.

Standard Accessories

Standard accessories include a remote control, arm rests, side supports, shoulder supports, leg supports, an anaesthetic screen, clamps, and a mattress for convenient operation and patient positioning.

Technical Specifications

Explore the advanced features, performance, and technical specifications of the Ayra K4 OT Table.

Model Ayra K2 OT Table
Length of Table 2000 mm
Width of Table Top 540 mm
Height of Table 750 mm to 1000 mm
Trendelenburg 25°
Reverse Trendelenburg 25°
Lateral Tilt 20°
Back Section Up/Down 80°/30°
Head Section Up/Down 30°/55°
Leg Section 0°-90°
Floor Locking System Manual Floor Locking

Available in 3 different variants

Adjustable maximum and minimum heights for comfortable working, seated or standing, Height without Mattress

Low Height

Low Height

Min 26 to Max 36 Inch
Standard

Standard

Min 30 to Max 40 Inch
Ultra Low Height

Ultra Low Height

Min 26 to Max 42 Inch

Frequently Asked Questions

The table supports height adjustment, Trendelenburg, Reverse Trendelenburg, left and right lateral tilt, flex and reflex positions, and a manually operated built-in kidney bridge.

It features a five-section radiolucent tabletop designed to support imaging requirements during surgical procedures.

The AYRA K2 features detachable head, leg, and pelvic sections. An optional split leg section is also available.

The table comes with a manual floor-locking system. Remote-controlled floor locking is available as an optional feature.

Standard accessories include a remote control, arm rests, side supports, shoulder supports, leg supports, an anaesthetic screen, clamps, and a mattress.

Optional features include remote-controlled floor locking, a wireless remote, an additional control panel, a sliding tabletop, and a manual override. Battery backup is also specified in the product features.
