Tejas 2 Function Electric Table

Tejas 2 Function Electric Table

Enhanced C-Arm Accessibility with Advanced Stability

The Tejas Electric OT Table is designed to deliver precise patient positioning, enhanced C-arm accessibility, and advanced stability during surgical procedures. Featuring a five-section radiolucent tabletop, smooth electric height adjustment, and versatile positioning capabilities, it supports a wide range of surgical requirements. Its medical-grade stainless steel construction, antistatic and waterproof mattress, and integrated kidney bridge combine durability, comfort, and functionality for efficient surgical performance.

C-Arm Compatible
150 kg Load Capacity
Electric Height Adjustment
Medical-Grade Stainless Steel
Categories: ,

Equipped With Advanced Features

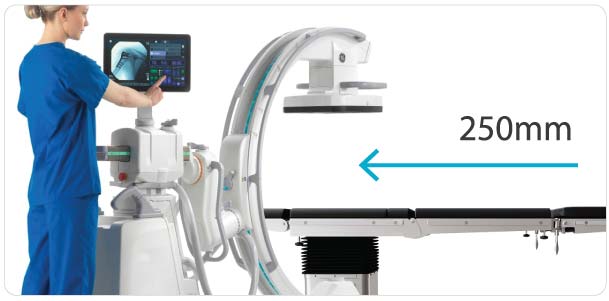

TMI Longitudinal Slide

Advanced Longitudinal Slide for C-Arm Access

Longitudinal Slide offers up to 250mm of movement for C-arm access without patient repositioning.

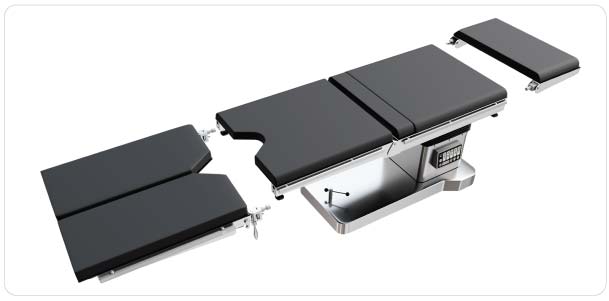

Interchangeable Sections for Surgical Versatility

Interchangeable Sections for Surgical Versatility

Interchangeable head and leg sections with detachable pelvic section for enhanced surgical versatility.

Tejas Series Features

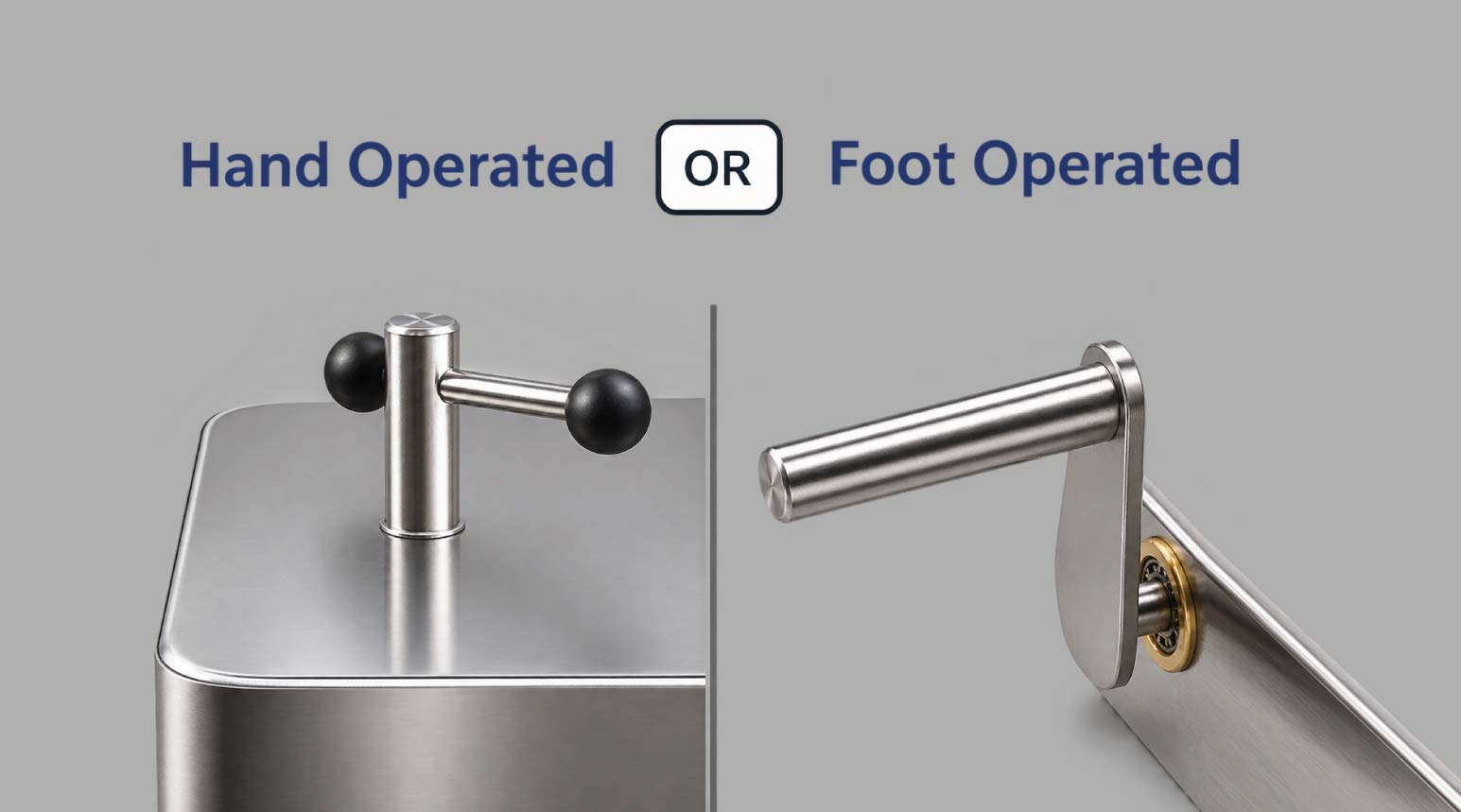

Manual Floor Locking

Manual Floor Locking

Designed for easy hand or foot-controlled locking and unlocking of the wheels, the system ensures Crm table stability and smooth mobility.

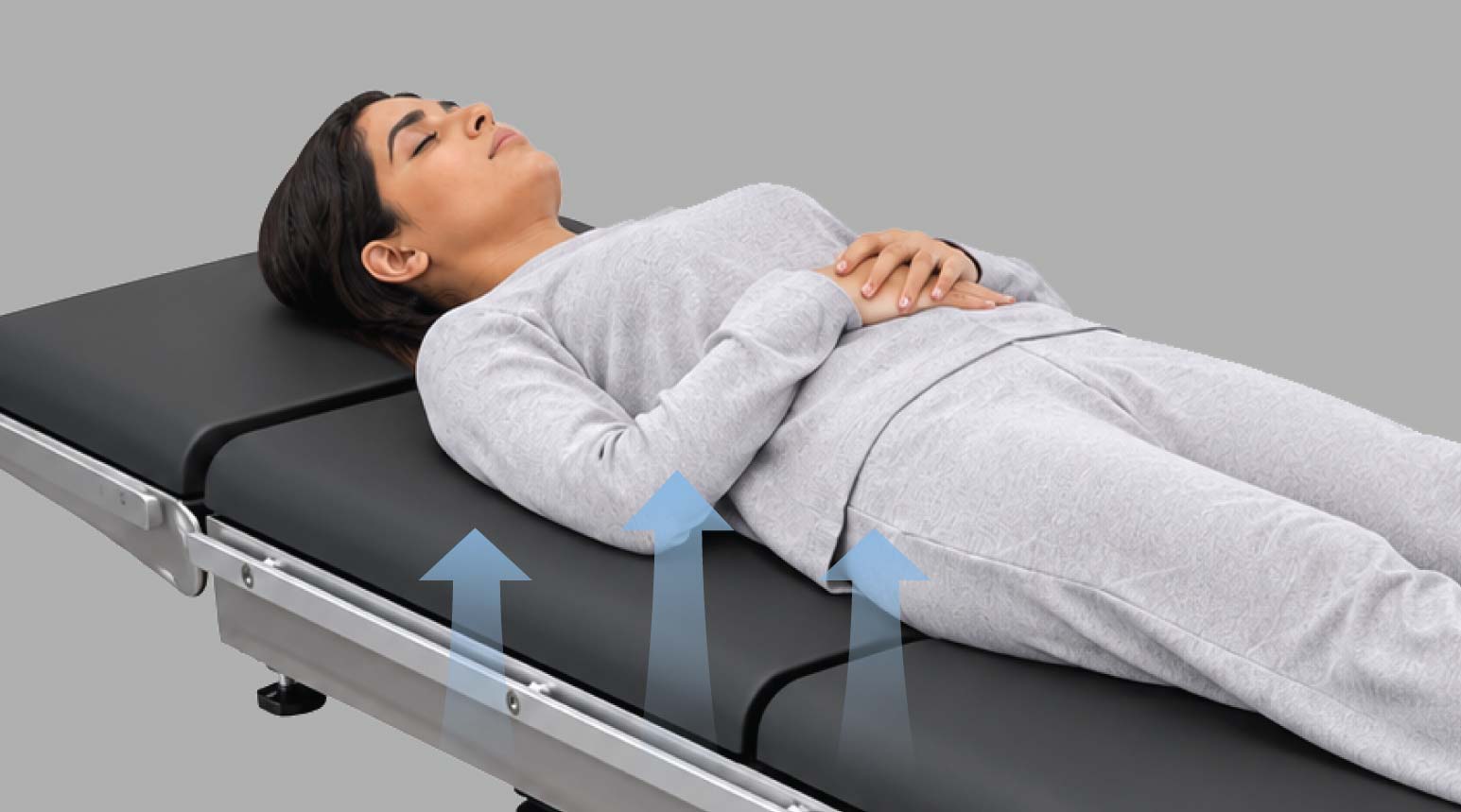

Breathable Mattress for Long Lifespan

Breathable Mattress for Long Lifespan

Trapped heat and moisture can cause foam and fabrics to break down more quickly over time. The enhanced ventilation in our mattress helps materials maintain their support and shape for longer.

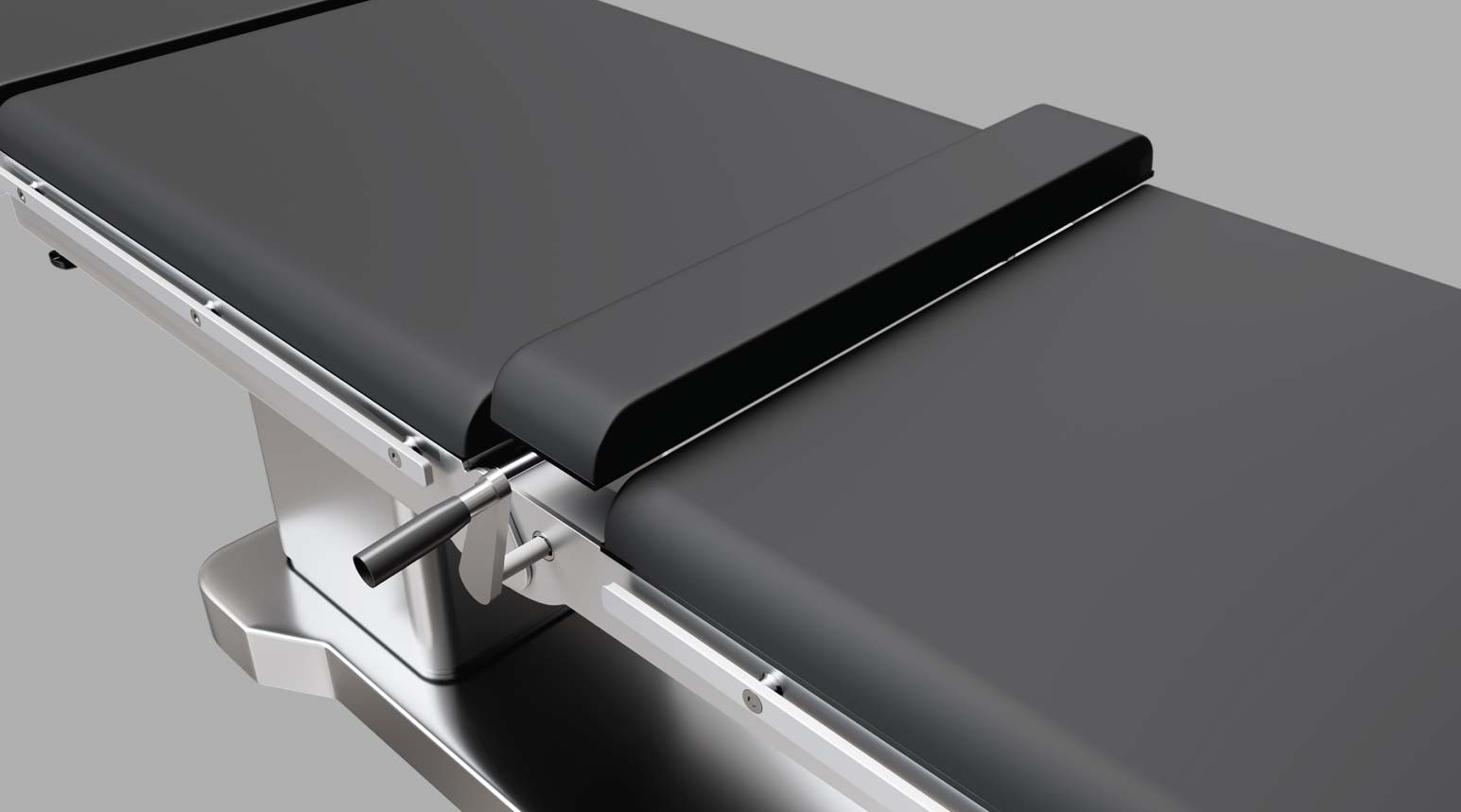

Integrated Kidney Bridge

It provides smooth upward and downward movement through a crank handle for precise patient positioning during surgical procedures

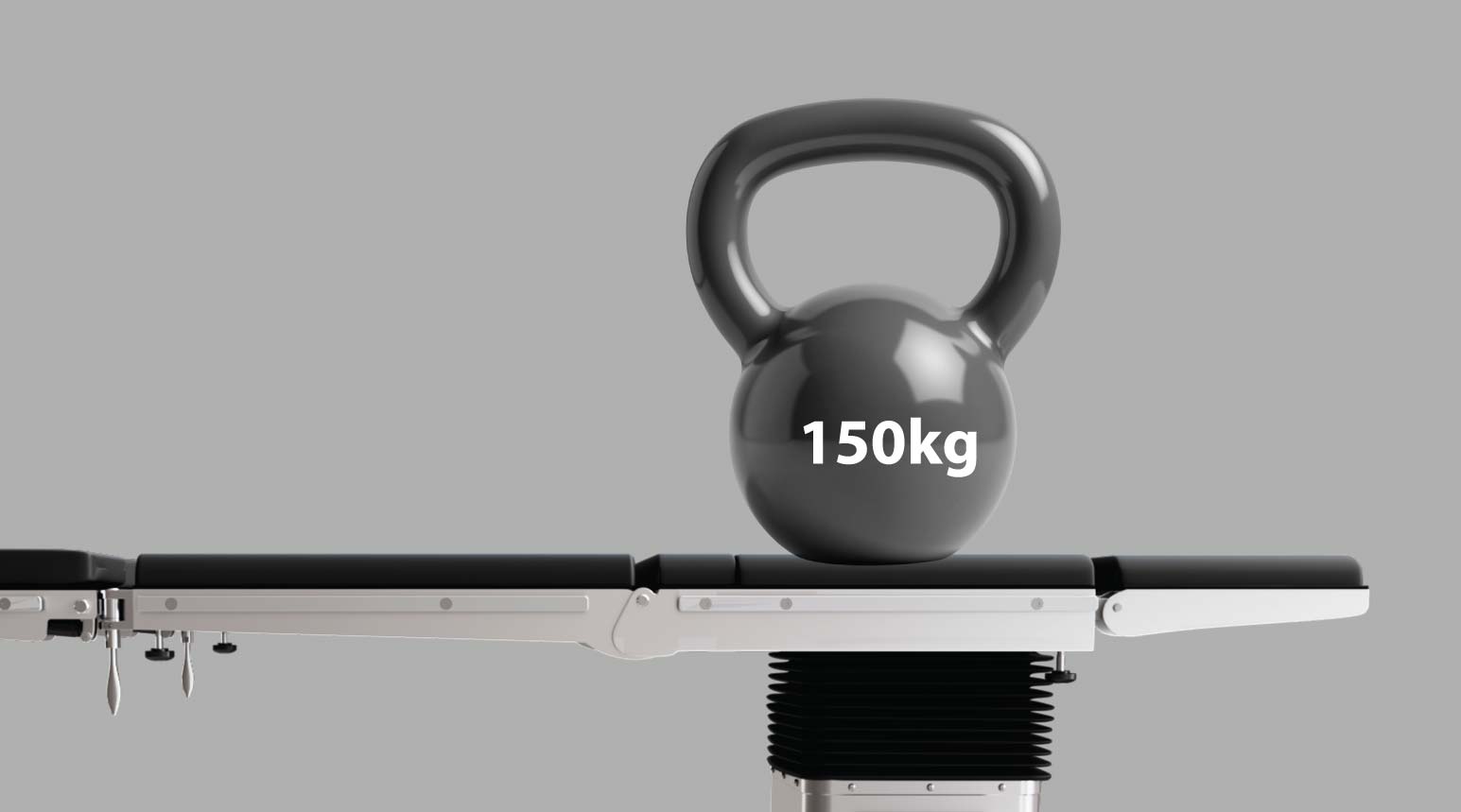

High Load Capacity & Stability

Weight bearing capacity of 150kg ensures safety and stability.

Tejas Series Optional Features

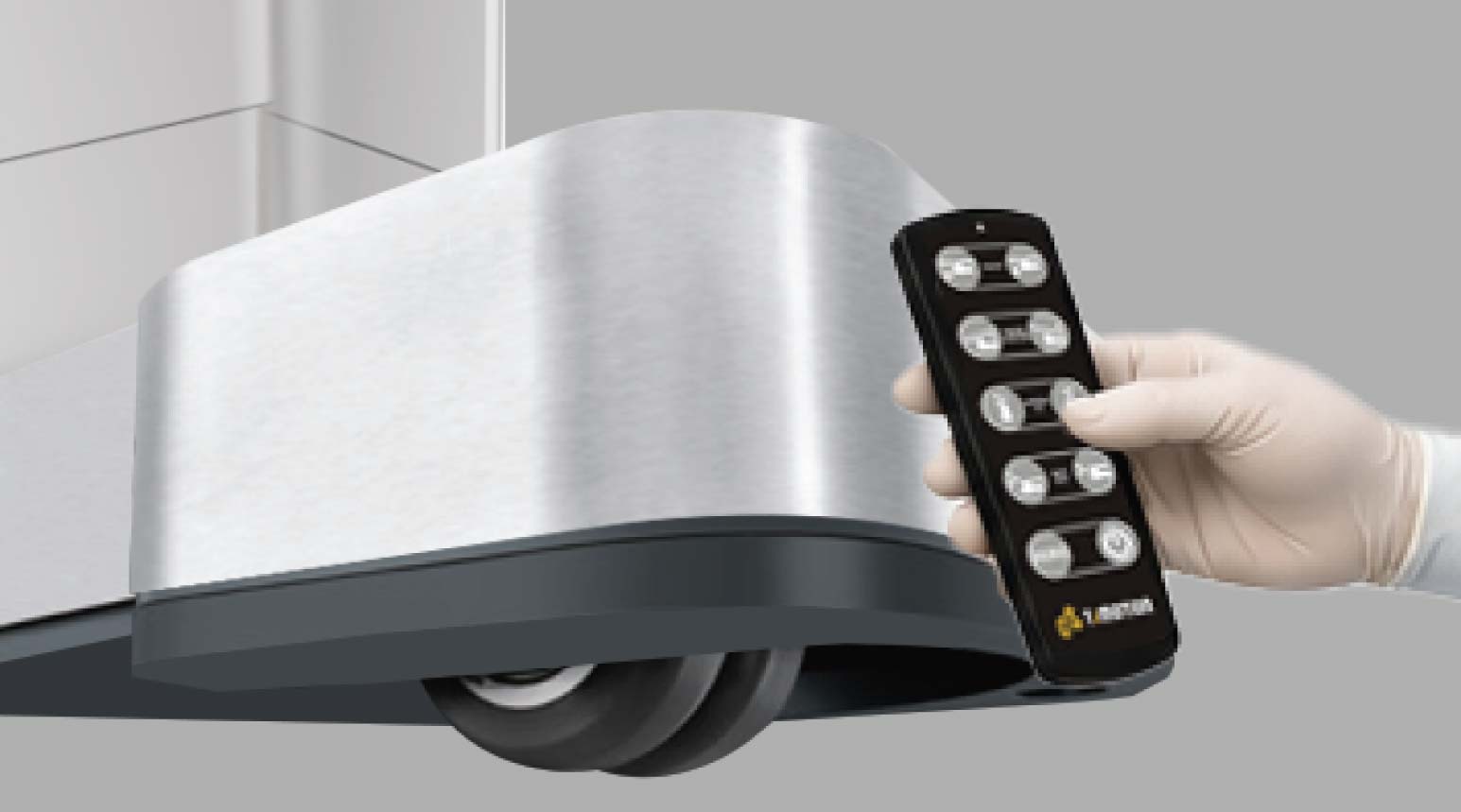

Floor Locking by Remote

Floor Locking by Remote

Electric floor locking system allows easy lock and unlock functionality through the remote control for secure table stability.

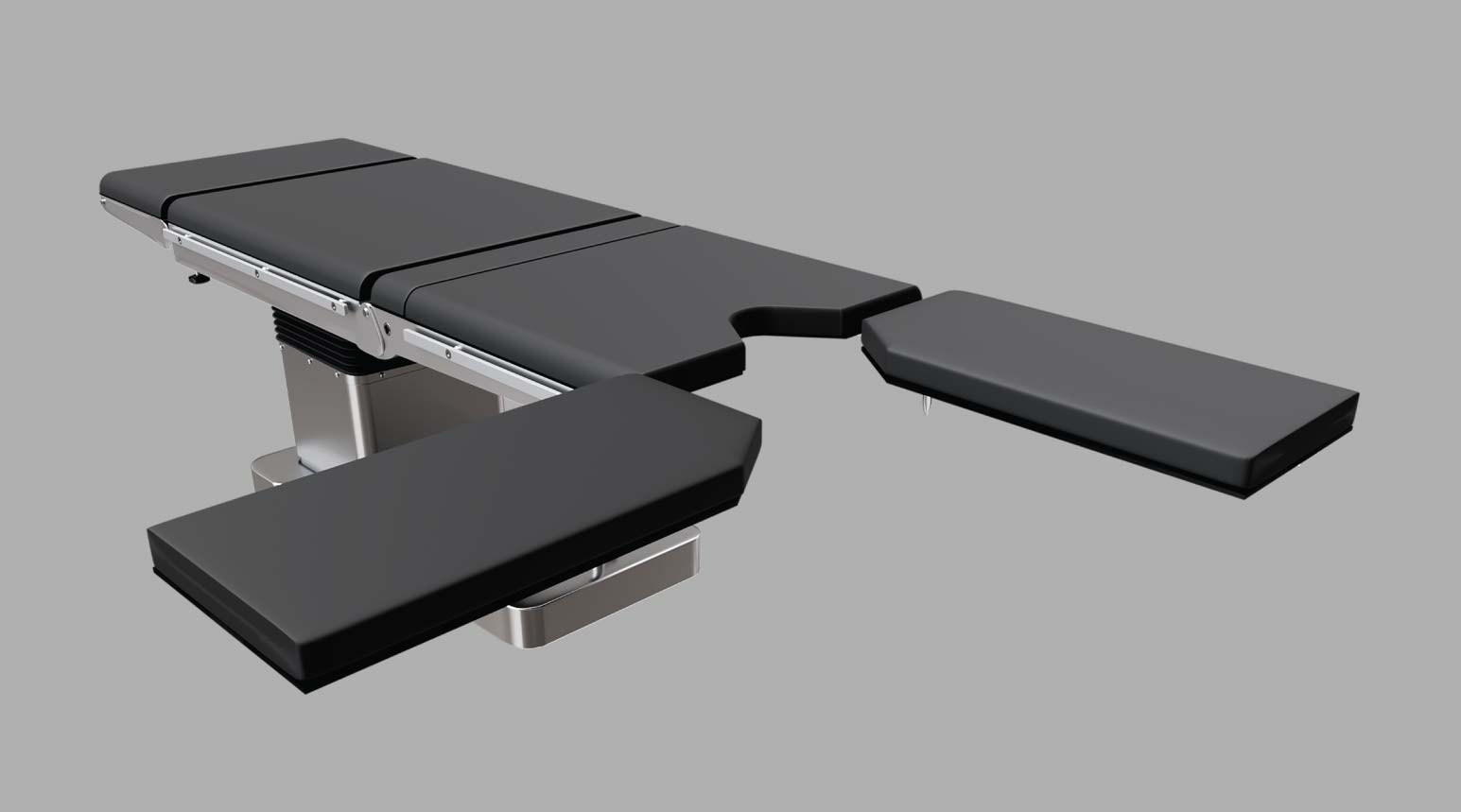

Split Leg Section

Split Leg Section

Designed with a gas spring mechanism to provide smooth adjustment and enhanced positioning Flexibility.

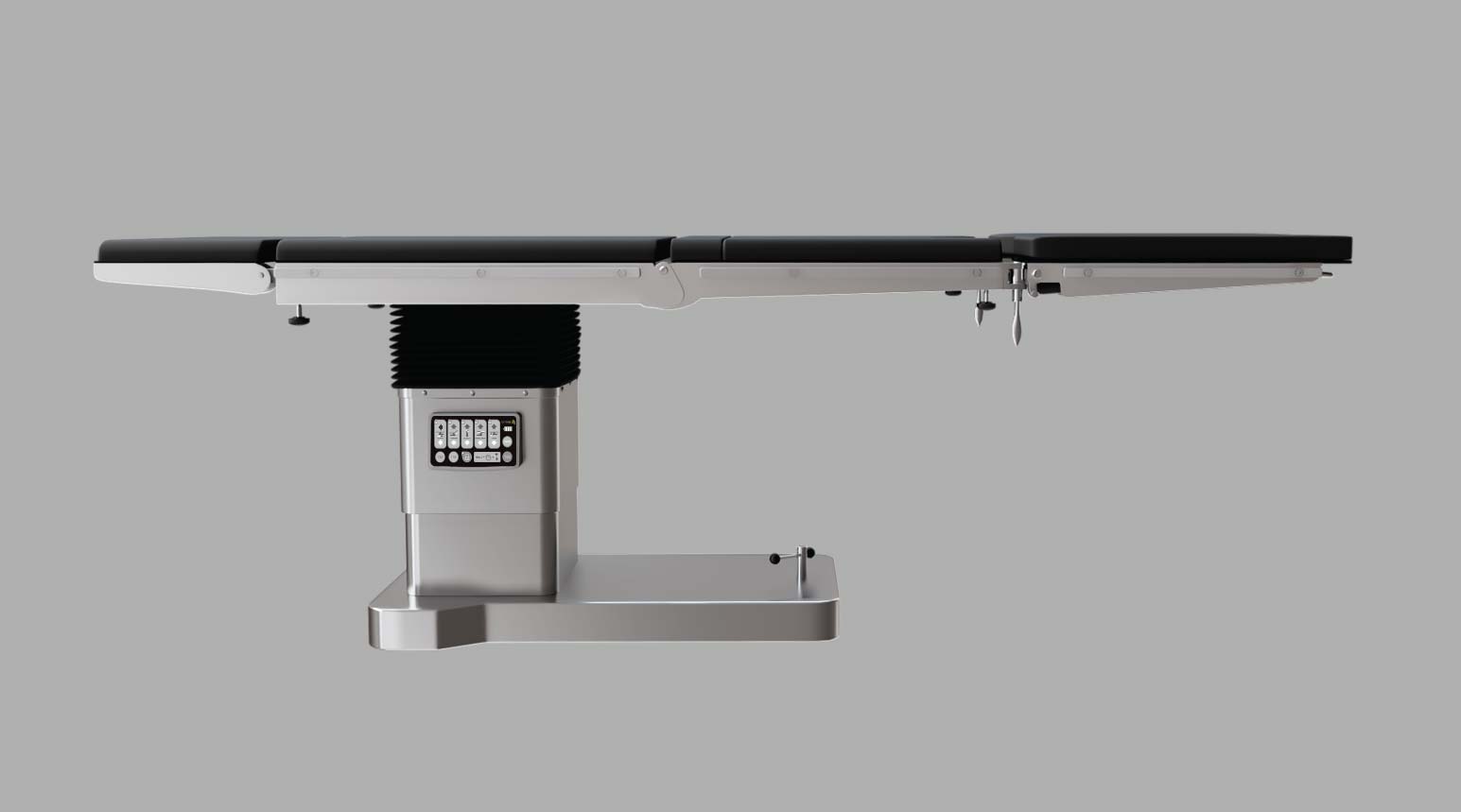

Sliding Top

Sliding Top

Longitudinal movement provides smooth forward and backward movement for enhanced C-arm accessibility during surgical procedures.

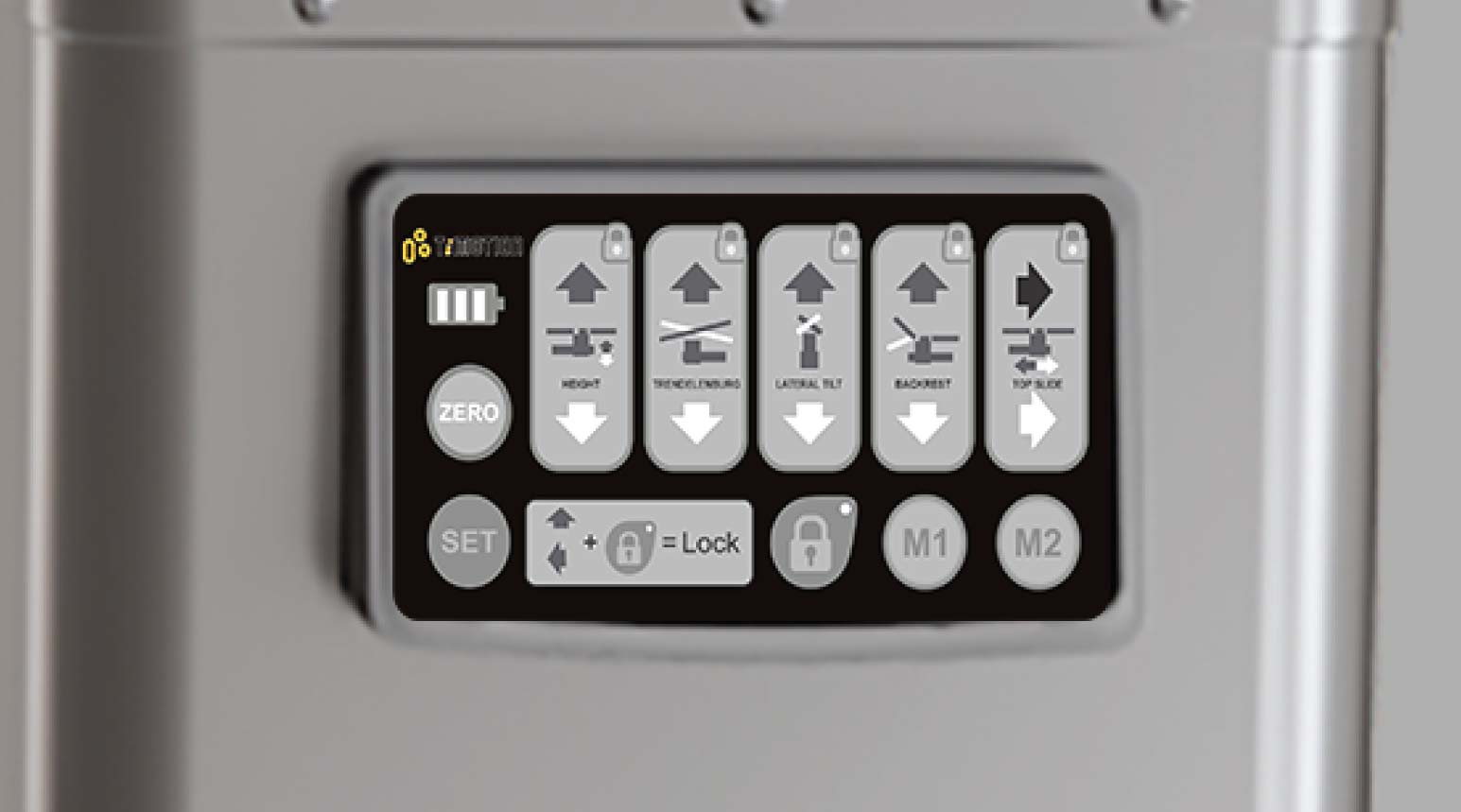

Electric Control Panel

Electric Control Panel

Integrated secondary controller enables smooth and efficient operation of all table functions with double memory storage and zero positioning features.

Wireless Remote

Wireless Remote

Provides seamless wireless control for effortless table positioning and enhanced surgical convenience.

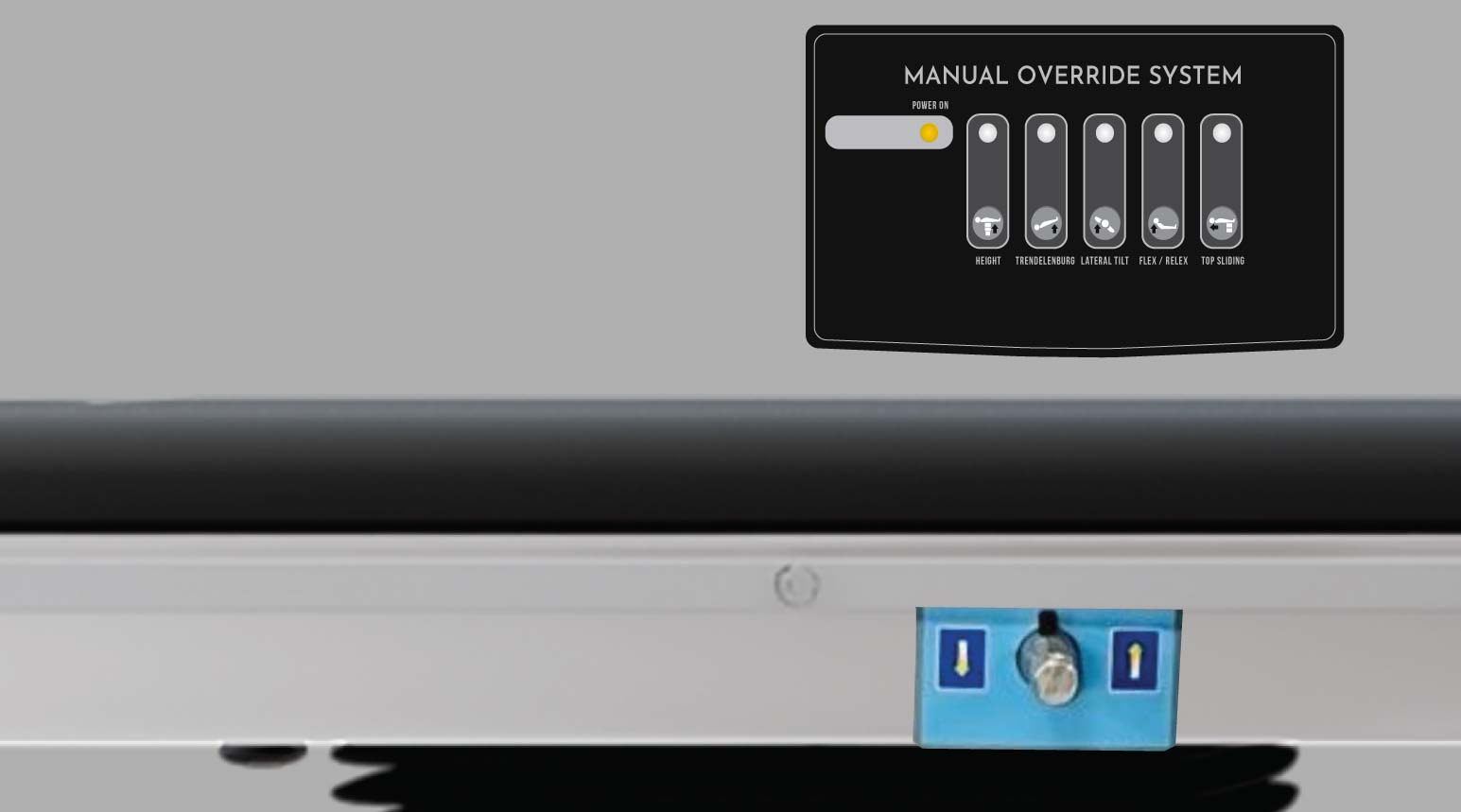

Manual Override Panel

Manual Override Panel

This emergency system ensures smooth and uninterrupted operation of all table positions during power failure by simply connecting and rotating supplied crank handle on the override control knob.

Salient Features

Designed for diverse surgical disciplines, this operating table features a modular tabletop with easy-click mounting points for quick adaptation to different procedures and patient heights, an antistatic and waterproof mattress, an eccentric pillar, stainless steel fittings, detachable head and leg sections, an integrated kidney bridge, a five-section radiolucent tabletop, an attractive and easy-to-clean stainless steel base and cover, and sophisticated mechanical systems for smooth, stepless tabletop articulation and precise patient positioning.

Standard Accessories

The Tejas Electric OT Table comes with essential accessories, including a remote control, arm rests, side supports, shoulder supports, leg supports, an anaesthetic screen, clamps, and a comfortable mattress to support patient positioning and surgical convenience.

Table Position by Remote

Height Adjustment (Up and Down), Trendelenburg and Reverse Trendelenburg Positions.

Table Position by Manual

Lateral Tilt (Left and Right), Flex and Reflex Positions, and Adjustable Kidney Bridge.

Technical Specifications

Explore the advanced features, performance, and technical specifications of the Tejas Electric OT Table.

Model TEJAS 2 Function
Length of Table 2000 mm
Width of Table Top 540 mm
Height of Table 750 mm to 1000 mm
Trendelenburg 25°
Reverse Trendelenburg 25°
Lateral Tilt - Left & Right 20°
Back Section Up/Down 70°/30°
Head Section Up/Down 30°/55°
Leg Section 0°-90°
Floor Locking System Manual Floor Locking

Dimensions

Available in 3 different variants

Adjustable maximum and minimum heights for comfortable working, seated or standing, Height without Mattress

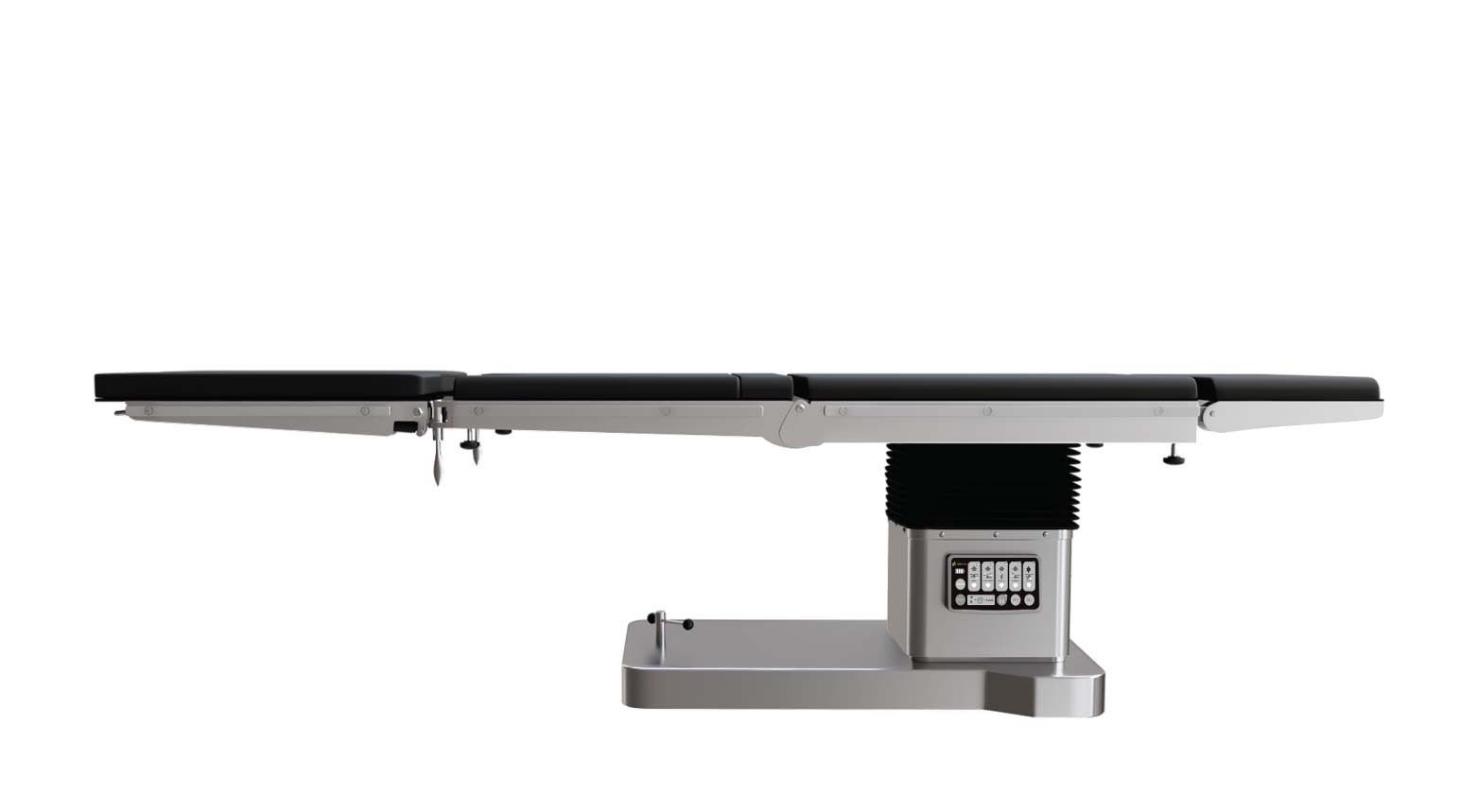

Low Height

Low Height

Min 26 to Max 36 Inch

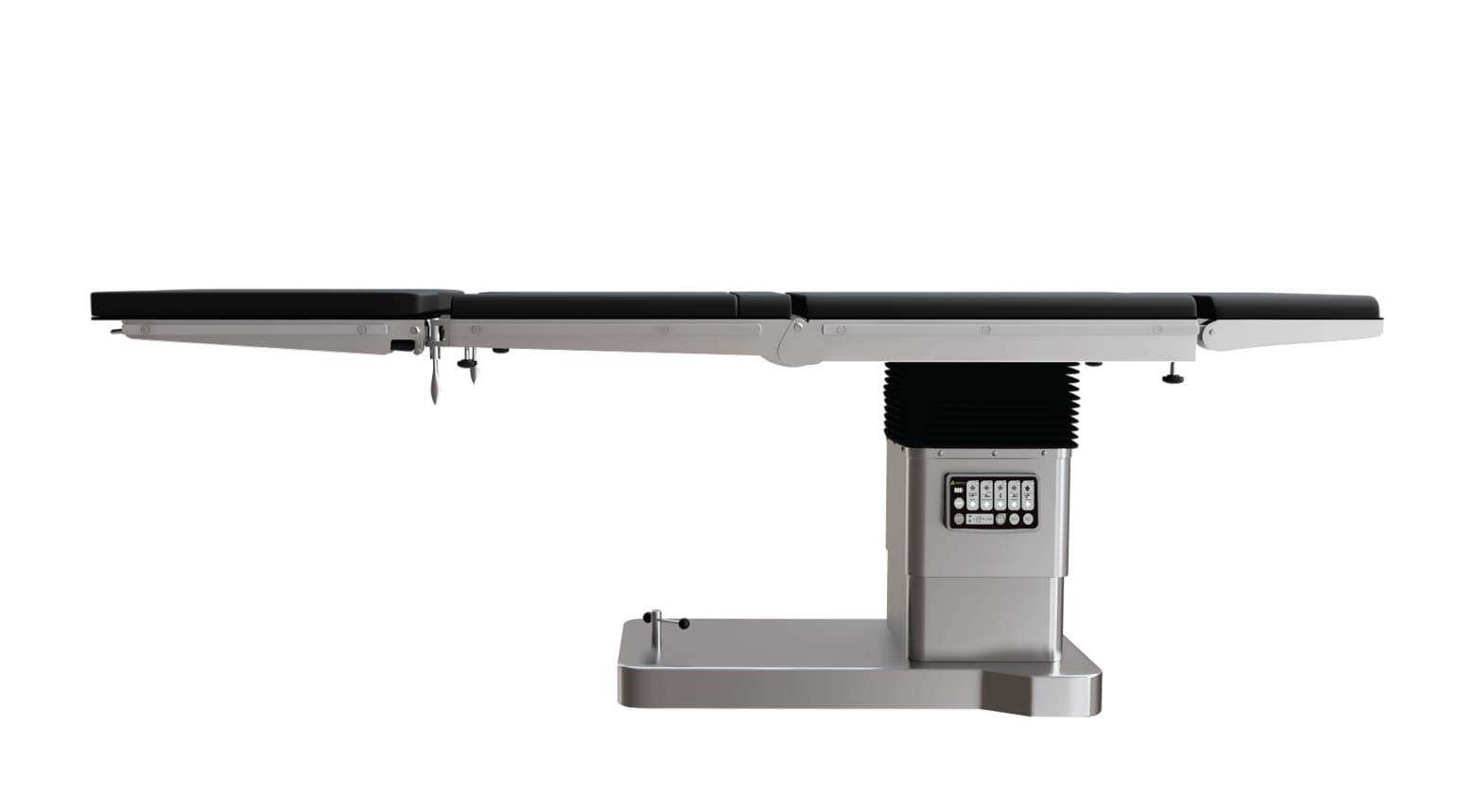

Standard

Standard

Min 30 to Max 40 Inch

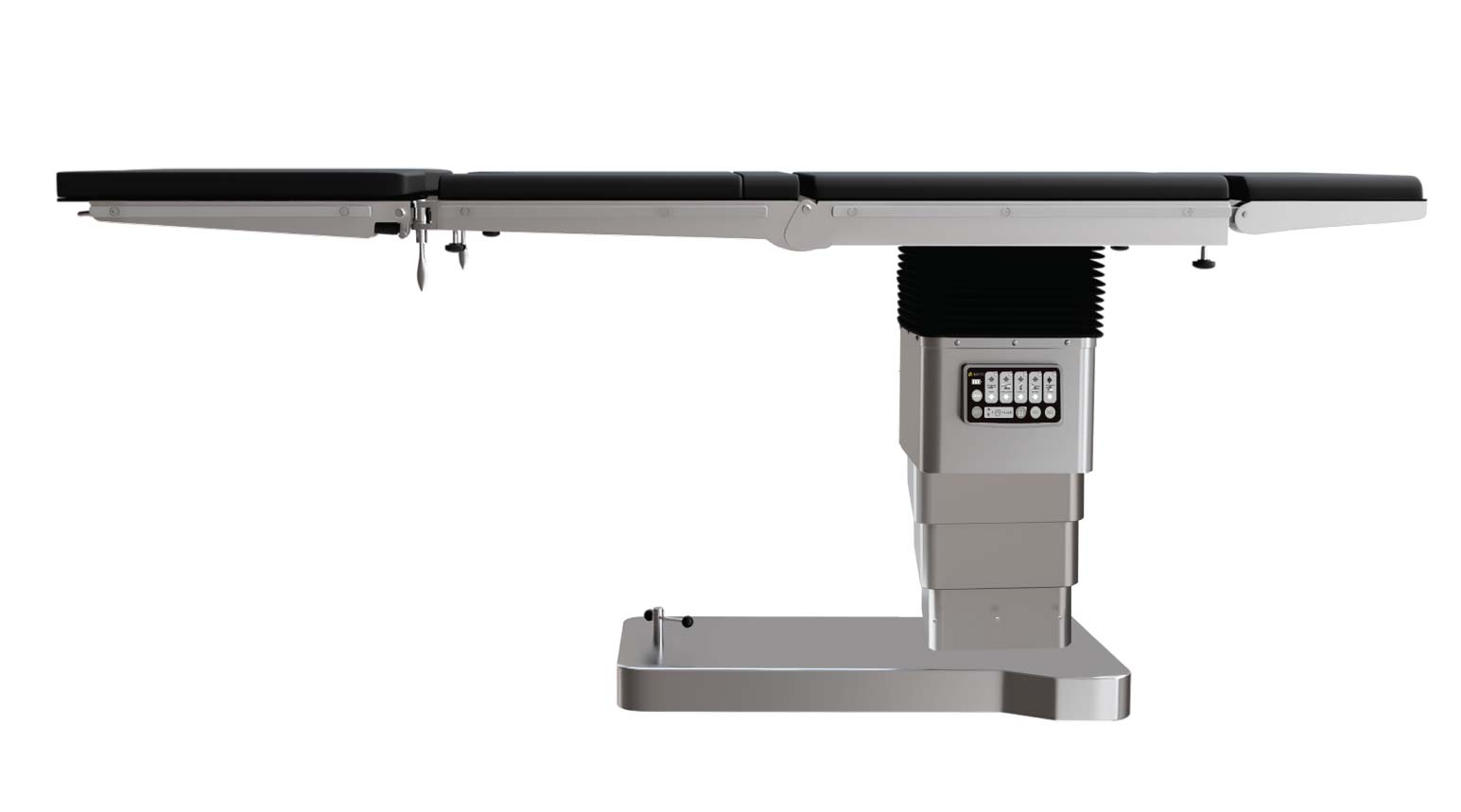

Ultra Low Height

Ultra Low Height

Min 26 to Max 42 Inch

Frequently Asked Questions

Key features include electric height adjustment, a five-section radiolucent tabletop, an integrated kidney bridge, detachable head and leg sections, and a 150 kg weight-bearing capacity.

The Tejas Electric OT Table has a maximum weight-bearing capacity of 150 kg.

Yes, its radiolucent tabletop and available longitudinal sliding feature support C-arm access during compatible surgical procedures.

Yes, it supports Trendelenburg, reverse Trendelenburg, lateral tilt, and adjustable back, head, and leg sections for versatile patient positioning.

Yes, it features an integrated kidney bridge with crank-operated adjustment to support appropriate patient positioning during relevant surgical procedures.

Choose the appropriate configuration based on surgical requirements, preferred table height, patient positioning needs, imaging access, and required accessories. Contact Technomed India to confirm the available options and specifications.
