HYBRID OT Table

Hybrid OT Table

Electric Surgical Table

The surgical table features an SMPS-based control box for improved voltage fluctuation handling and zero idle power consumption, an ergonomic remote with a spiral cable, LED-backlit switches and symbolic position indicators for easy operation in low-light conditions, a 150 kg weight capacity for stability, gas spring-operated head and leg sections, a 250 mm longitudinal slide for C-arm access without repositioning the patient, and an optional split leg section.

Wireless Remote
Reverse Orientation
Sliding Table Top
Floor Locking by Remote
Manual Override
Categories: ,

Equipped With Advanced Features

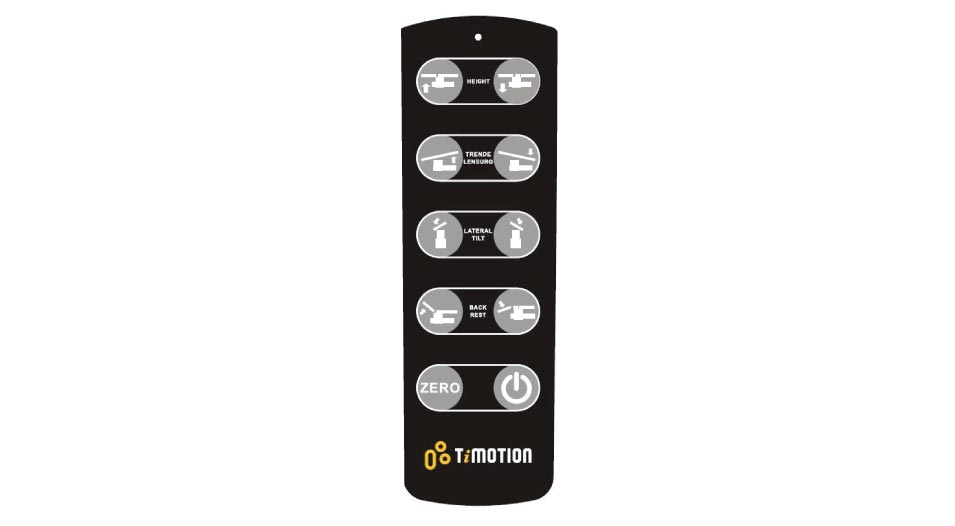

Remote

The handheld remote allows easy and precise adjustment of operating table height and positioning, offering convenient control during surgical procedures.

Remote

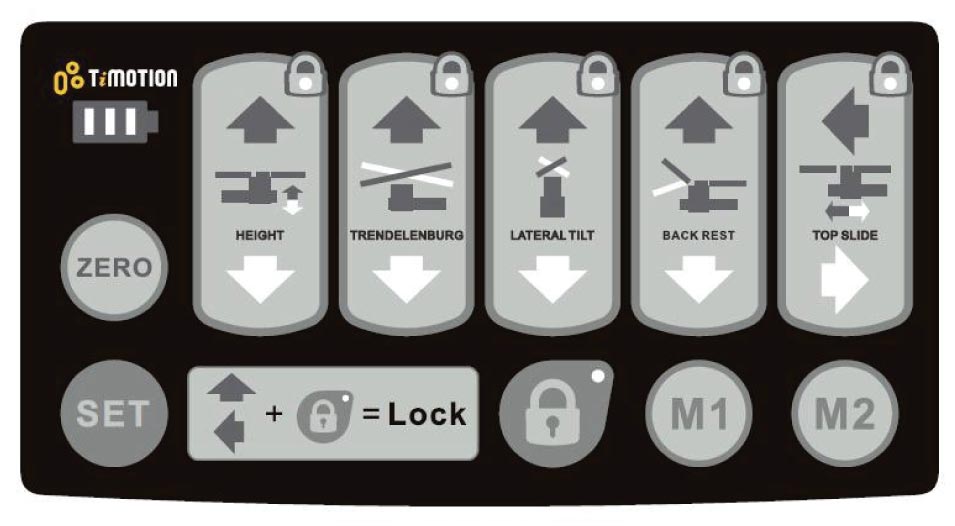

Control Panel

The user-friendly control panel enables convenient and precise adjustment of operating table positions, ensuring smooth operation and efficient patient positioning during surgical procedures.

Control Panel

Salient Features

The surgical table features a one-touch zero-position facility, reverse patient orientation mode, a stainless steel base and column covers for easy cleaning, two memory functions, battery status indication, an antibacterial and antifungal mattress, a backlit LED handset, manually operated head and foot sections with a ratchet system, a split leg section, a central pillar, detachable head, leg and pelvic sections with stainless steel fittings, a built-in kidney bridge, a five-section radiolucent tabletop, smooth and stepless tabletop articulation for precise patient positioning, and a standby battery backup with a recharging circuit.

Optional features

Optional features include wireless remote control, reverse orientation, a sliding tabletop, remote-controlled floor locking, and a manual override function.

Table Positions

The surgical table offers up-and-down height adjustment, left and right lateral tilt, Trendelenburg and reverse Trendelenburg positions, flex and reflex positioning, and a manually operated built-in kidney bridge for enhanced surgical flexibility.

Standard Accessories

The surgical table comes with additional accessories, including an additional control panel, remote, armrests, side supports, shoulder supports, leg supports, an anaesthetic screen, clamps, and a mattress for enhanced convenience and patient support.

Technical Specifications

Explore the advanced features, performance, and technical specifications of the Hybrid OT Table.

Model Hybrid OT Table
Length of Table 2000 mm
Width of Table Top 540 mm
Height of Table 750 mm to 1000 mm
Trendelenburg 25°
Reverse Trendelenburg 25°
Lateral Tilt 20°
Back Section Up/Down 80°/30°
Head Section Up/Down 30°/55°
Leg Section 0°-90°
Floor Locking System Center Floor Locking by Single Foot Lever

Choice Between Stainless Steel and ABS Base

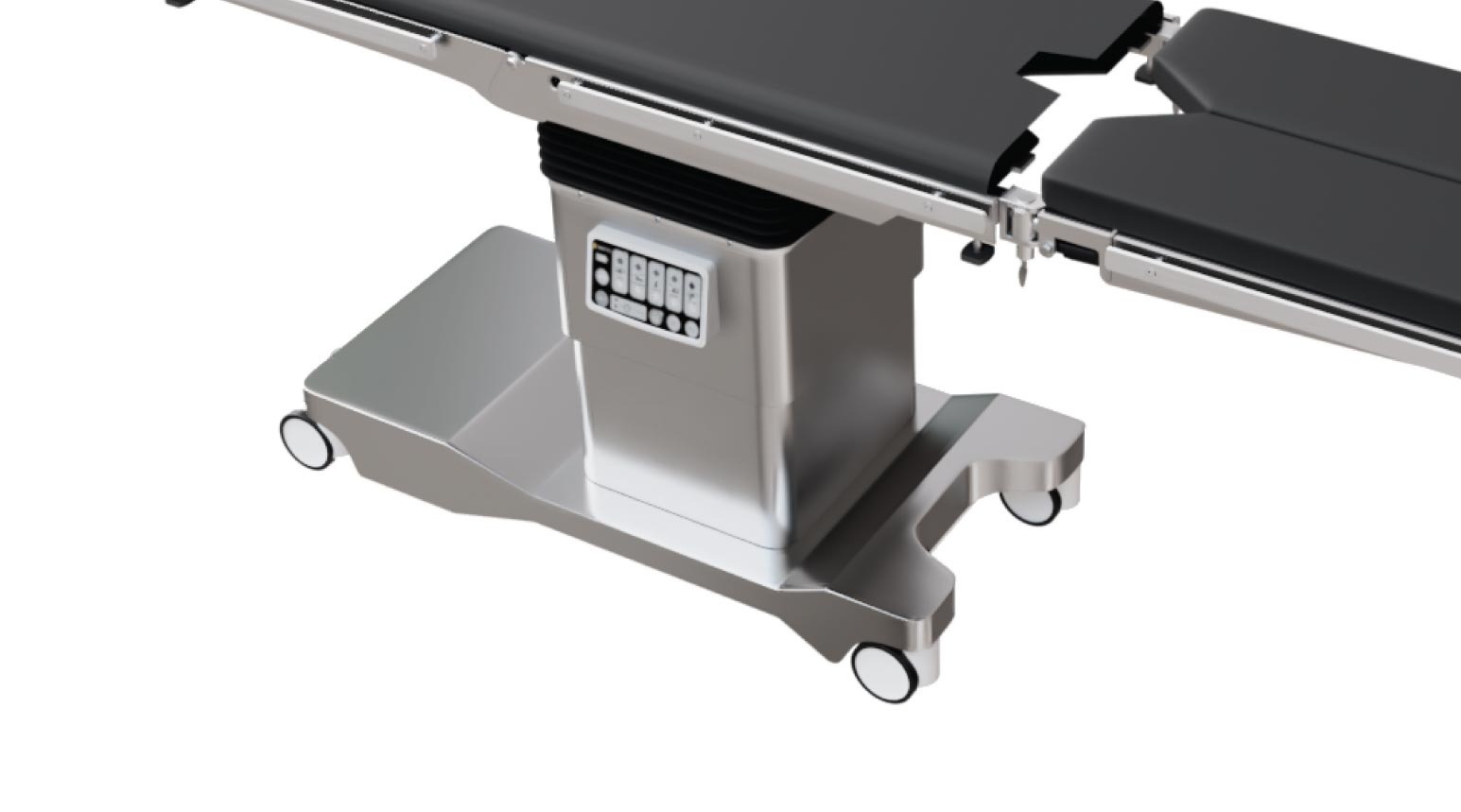

Stainless Steel OT Table

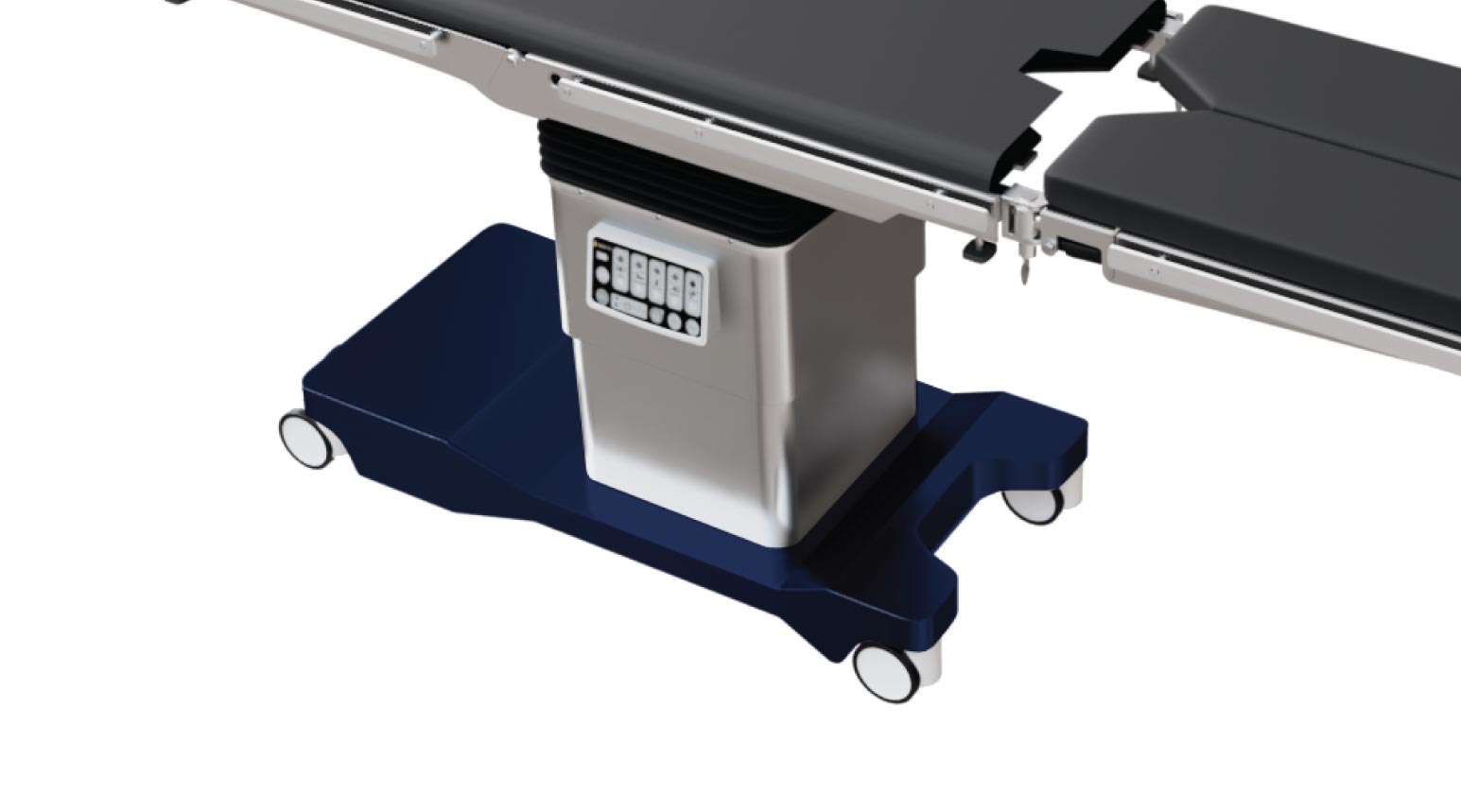

ABS Base OT Table

Advanced Operating Table Positioning Features

Features include chair positioning, a built-in kidney bridge, and a split leg section for flexible and precise surgical positioning.

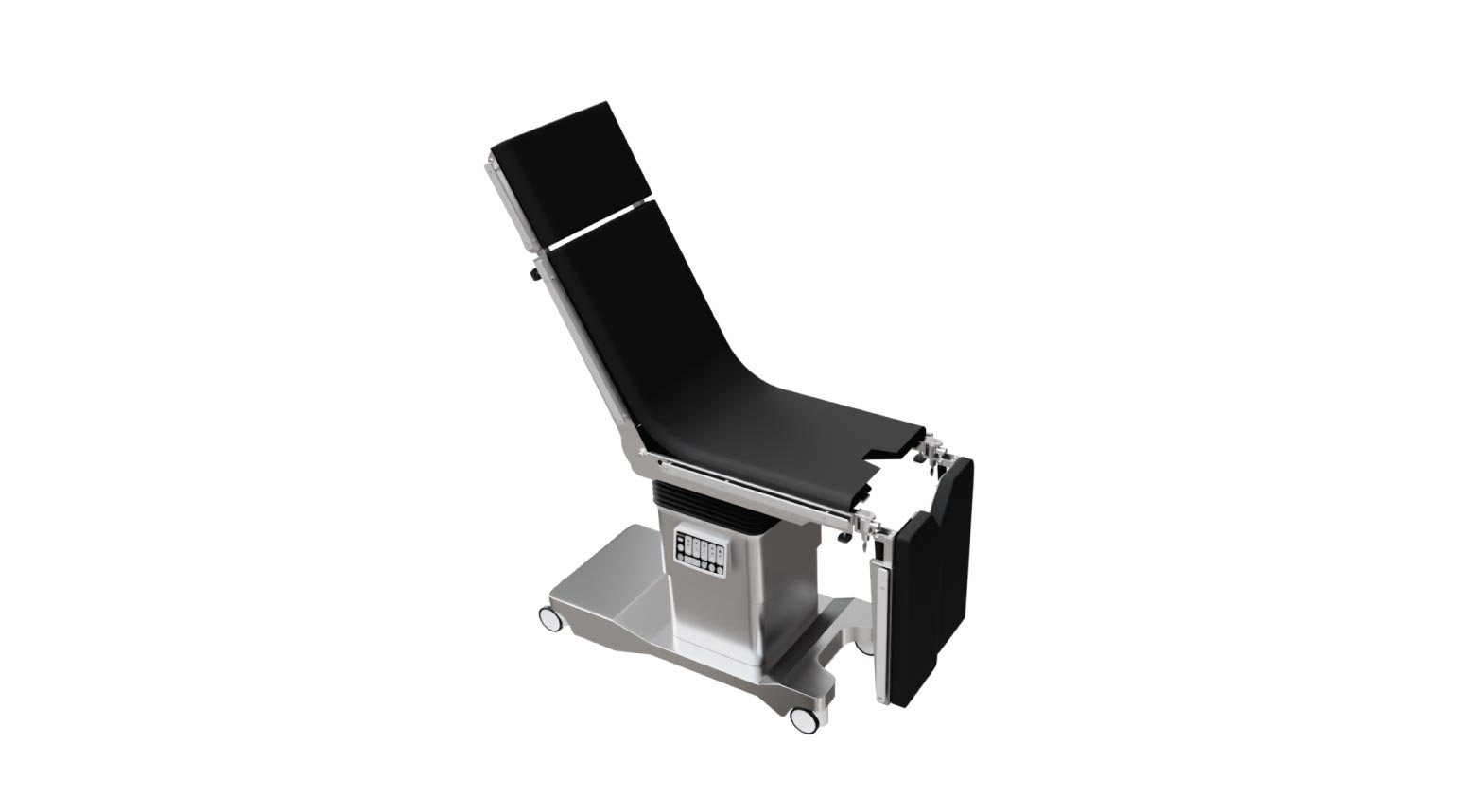

Chair Position

Chair Position

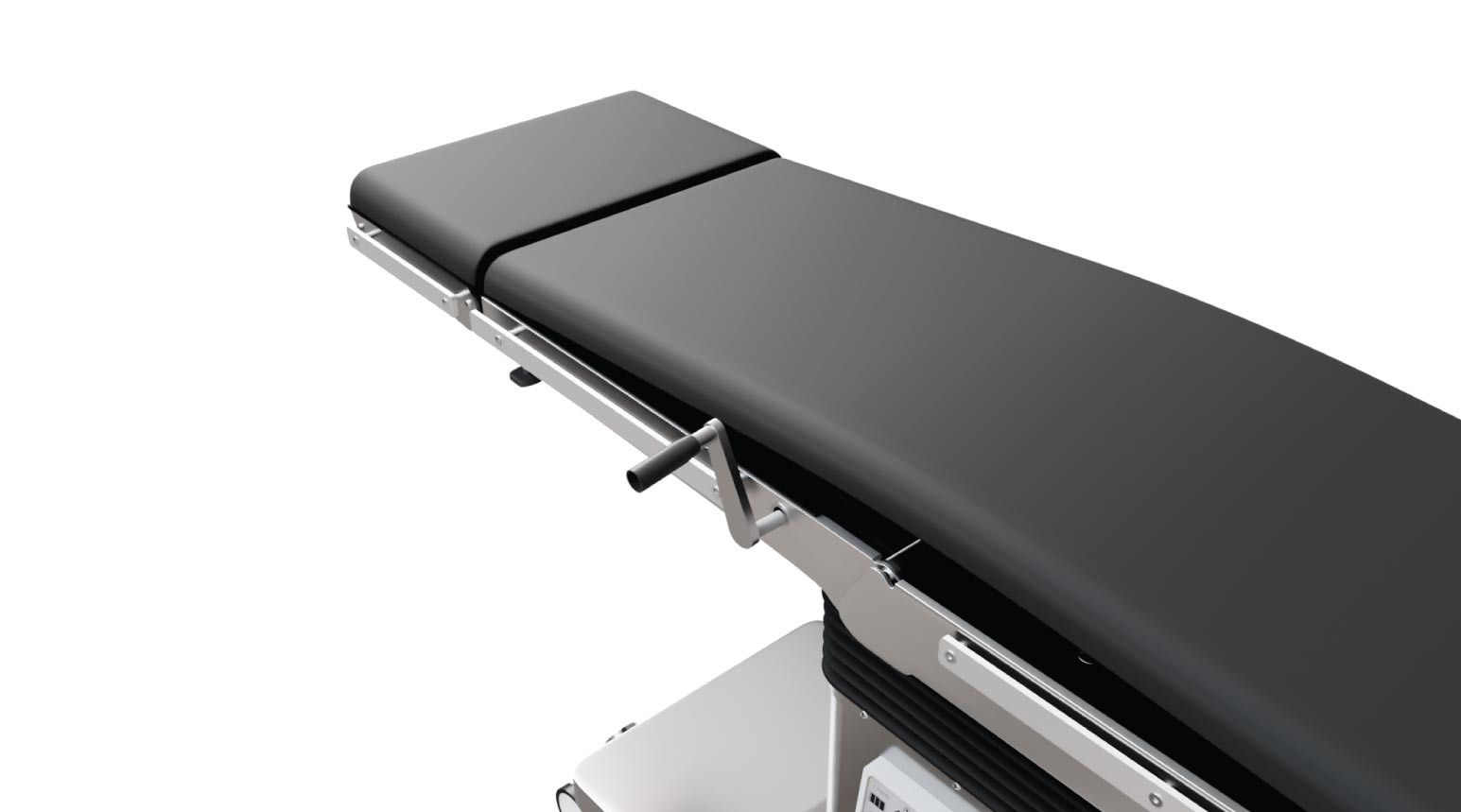

In built Kidney Bridge

In built Kidney Bridge

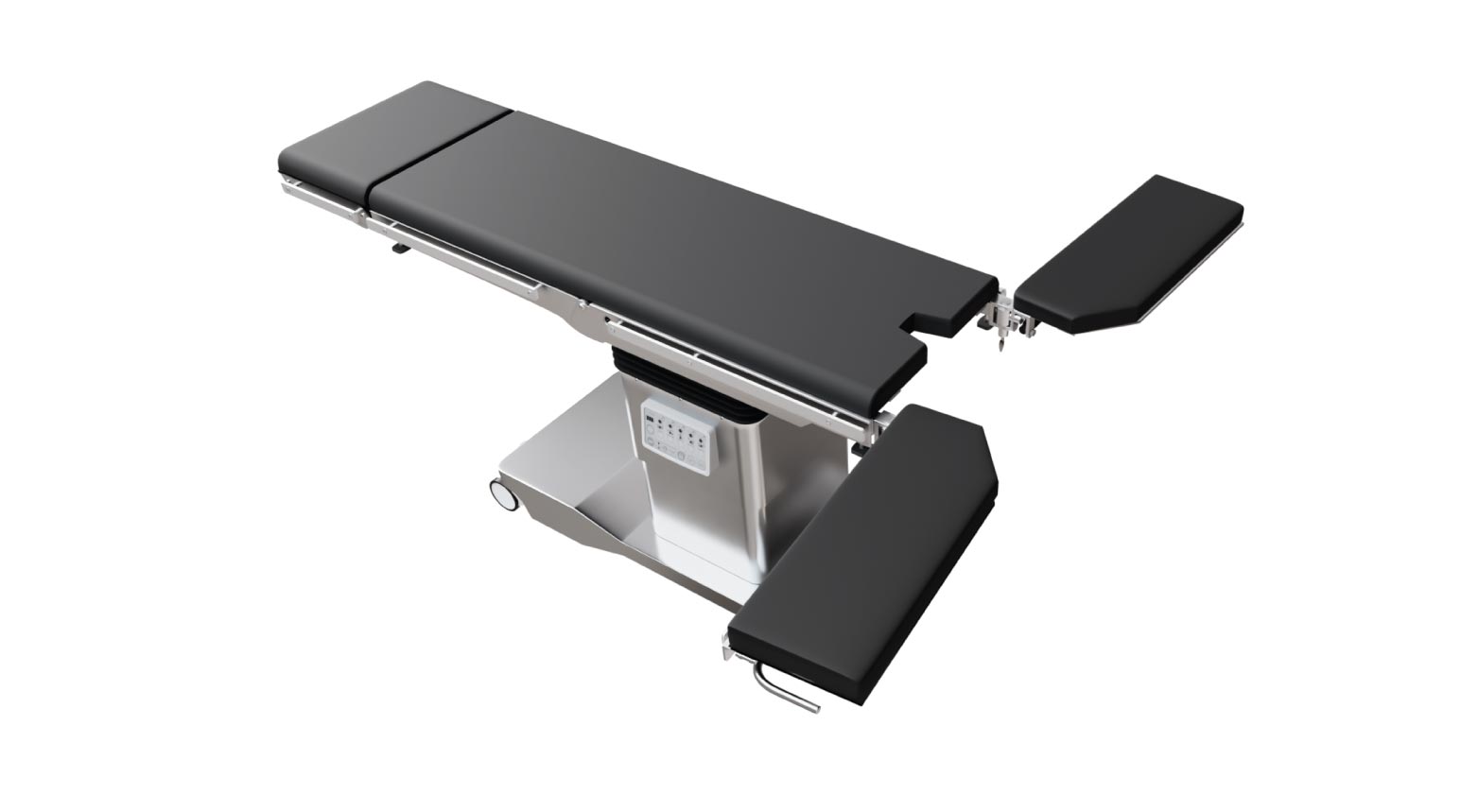

Split Leg Section

Split Leg Section

Dimensions OT Table

Available in 3 different variants

Adjustable maximum and minimum heights for comfortable working, seated or standing, Height without Mattress

Low Height

Low Height

Min 26 to Max 36 Inch
Standard

Standard

Min 30 to Max 40 Inch
Ultra Low Height

Ultra Low Height

Min 26 to Max 42 Inch

Frequently Asked Questions

The tabletop measures 2000 mm in length and 540 mm in width.

The standard height range is 750–1000 mm without the mattress. Standard, Low Height, and Ultra Low Height variants are available.

Yes, a horizontal sliding movement of up to 250 mm is specified, with the sliding tabletop listed as an optional feature.

Yes, the HYBRID Electric Surgical Table features a built-in kidney bridge to support appropriate patient positioning during procedures.

The table features a control panel with two memory functions and a remote handset with LED-backlit indicators. Optional controls include a wireless remote and manual override.

The table features a five-section radiolucent tabletop, stainless-steel fittings, and a base available in stainless steel or ABS, depending on the selected configuration.
